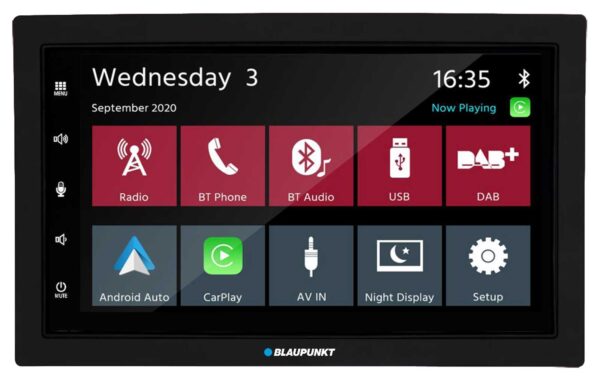

BLAUPUNKT Mannheim 600 DAB – 2DIN MP3 Car Stereo with CarPlay / Touchscreen / Bluetooth / USB

FM, AM, DAB, DAB+ tuner with PS, AF, REG, RT, CT, TA, DLS
USB, AV, Bluetooth
MP3, FLAC, OGG, WMA, WAV, MKV, AVI Support
Rear view camera function (optional)
Apple Car Play: Navigation, Internet radio, music player, apps, voice assistant
Android Auto: Navigation, Internet radio, music player, apps, voice assistant
Bluetooth: telephony, phone book access, list access, audio streaming with title display
digital signal processing
8-band equalizer + sound presets
4-channel preamp output + sub-out
4 x 45 watts
Generally

High-resolution TFT display
DIM function
Direct access to all audio sources
Permanent storage
Steering wheel remote control input (SWC)
Short installation depth
system

User interface: Graphical Blaupunkt user interface
Permanent memory: settings, radio presets etc.
Display

Technology: LED Backlight TFT
Screen size: 7″
Resolution: 1024 x 600 pixels
Touch screen
Display off
Clock/date display
Clock display: 24 / 12 hours
Radio system languages: English, German, French, Italian, Dutch, Swedish, Polish, Portuguese, Czech
Analogue radio

Tuner type: High-end CODEM IV
Waveband: FM, AM
Radio Data System (RDS): AF, PS,TA, TP,REG
Preset Scan
Search by frequency
Selection via frequency scale
Station presets: 18 FM / 12 AM
Frequency response (Hz) -3dB: 60 – 15,000
Digital Radio

DAB+ -integrated
DAB Band III
ServiceUpdate
Station memory (presets): 18
Station Browsing
Tape Scan
Radio Text
DLS (Dynamic Label Segment)
Slideshow
Smartphone connection

Apple CarPlay: via rear USB
Android Auto: via Rear USB
Data carrier

USB mass storage: USB (up to 32GB)
Formatting MSD: FAT / FAT 32
Media Player

Video playback formats: AVI, Mkv, DivX
Image playback formats: JPEG, JPG
Audio formats USB: MP3, WMA, FLAC, WAV, OGG
MP3 title display: ID3 tag (version 1 and 2), file name/folder name
Display album cover
Mix: all, folder
Repeat: all, folder, title
Fast forward / rewind: via progress bar
Number of files from MSD: up to ~ 20,000 files, depending on folder/file structure
Bluetooth

Supported version: Bluetooth 5.0
Supported profiles: HFP, PBAP, A2DP, AVRCP, HSP
Pairing (number of devices): 6
Hands-free calling
Main functions: Accept/End/Reject
Phone book access: up to 3,000 entries per mobile phone
Call lists
Auto synchronization
Auto Connect / Auto Answer
Microphones: Internal / External
Equalizer

Number of bands: 8
Model: Parametric
Type: Digital
Frequency bands: 62 Hz / 125 Hz / 200 Hz / 500 Hz / 1.25k / 5k / 8k / 12.5k
Subwoofer switchable
Subwoofer crossover frequencies: 80 Hz / 120 Hz / 160 Hz
Subwoofer Gain
Sound profiles
Balance / Fader
amplifier

Number of channels: 4
Max. power: 4 x 45 watts
Inputs

Antenna: 2 (Radio-DIN, DAB -SMB)
DAB: built-in
USB: Rear USB (Standard A-Type)
Audio / Video (analog): 1 Rear A/V (3.5 mm jack, 0.5V)
backup camera
Reverse signal
Handbrake signal
External hands-free microphone: Yes (3.5 mm jack, rear)
Steering wheel remote control: Yes (SWC, Rear, analog, 3.5 mm jack, programmable via menu)
Power supply: 12 V (ISO)
Outputs

4-channel preamplifier Yes (RCA, 2V)
Subwoofer Yes (RCA)
Audio channels 4
Generally

Installation: 2-DIN slot
Operating voltage: 10.5 – 16 V
Current consumption: In operation max. 10 A
Front Panel: Fixed
Colour: Black
