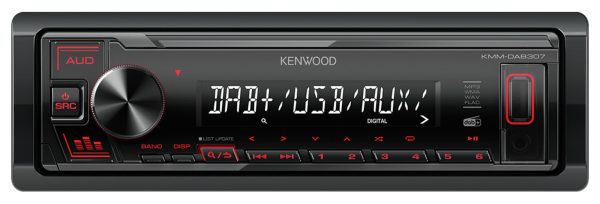

KENWOOD KMM-DAB307 – MP3 car radio with DAB / USB / AUX-IN

Main features

• Integrated DAB+ receiver and high performance tuner for FM/MW/LW
• Seamless switching between DAB and FM (Seamless Blending)
• USB port with 1.5 A “Quick Charge” charging function
• White LC display with 13-digit display segments and VA technology for better readability
• Semi-parametric 13-band tone control & 7 pre-programmed sound patterns, Drive EQ
• Bass Boost and Loudness function, sound tuning technology “Sound Reconstruction.”
• preamplifier output with 2.5 V output level
• Max. output power: 4 x 50 watts
• Removable control panel with red button illumination
• Particularly low power consumption (less than 1 mA) when switched off
• ignition (ACC OFF)
• Over 30% lower installation depth (no CD drive): total 100 mm
• Prepared for factory-installed steering wheel remote control

General features

• DIN size 1 DIN
• Removable cover Yes
• key illumination red
• Rotary control & control knob Yes
• Dual direct access button audio settings & Easy EQ
• Backup Storage Menu Settings
• Beep tone Yes
• Digital time (24H) Yes
• Clock display in off state default off
• Shutdown after (20/40/60 minutes) Yes
• Integrated connector Mitsumi, 16 pin
• ISO connection Yes, Mitsumi to ISO cable
• USB host port Yes
• Update option Yes
• Mechless receiver Yes
• Short body Yes

Features Display

• Display type Liquid Crystal Display (LCD)
• Display segment 1 line 13-digit
• “VA” technology LCD Yes
• Display lighting white (LED)
• Variable lighting Yes
• Brightness controller (dimmer) manual / timer
• Brightness 0-31 steps
• Demo Mode Yes
• Selectable menu language English (default) / Spanish / French / Russian
• Language of the TAG display English, Spanish, Russian & Greek

design features

• Front panel/frame black, injection-molded plastic
• Decorative panel made of black, injection-molded plastic
• Key design black, injection-molded plastic
• Cover frame black, injection-molded plastic
• triangle lighting red
• Dust protection for front connections Yes
• key illumination red
• Illuminated Front USB Red
• Display lighting White LED
• Brightness control (buttons) 0 – 31 steps
• Brightness setting (display) 0 – 31 steps
• Dimmer (buttons) Manual / Timer
• Dimmer setting (display) Manual / Timer

Features Tuner

• Channel selection Manual / Preset
• Tuner memory button Yes
• FM reception Yes
• AM (MW/LW) reception Yes
• Station memory (FM/MW) 24 memories (18FM / 6MW)
• Permanent preset station memory Yes
• Station memory for FM & MW 6 memories
• Tuning (Auto 1 / Auto 2 / Manual) Auto1 / Auto2 / Manual
• Up/Down channel search Yes
• Automatic station storage (AME) Yes
• FM stereo/mono switching Yes
• Radio Data System Yes
• Radio Text Plus Yes
• Traffic information Yes
• Local Search Yes
• AR Regional Selectable: AF/AF Reg/OFF
• Automatic traffic information station search Yes
• Enhanced Other Networks Yes
• Program type recognition (PTY) Yes

DAB features

• Integrated DAB+ tuner Yes
• Digital Radio Certification Mark Yes
• Automatic channel search Yes, (Service, Ensemble & Component)
• Station search Auto1 / Auto2 / Manual
• Number of station memory locations 6 bands 3 memory locations
• Channel list in alphabetical order Yes
• Station preset list Yes
• Alphabetical channel search Yes
• Related service Yes
• Audio interruption during PTY standby Yes
• Audio interruption during announcements Yes
• DAB-RDS incl. TI Yes
• Traffic information Yes
• DAB priority Yes
• PTY (Program Type) Search Yes
• PTY (Program Type) Monitoring Yes
• Soft linking Yes
• On/Off switch for external antenna power supply Yes

Playable audio files

• Playback of MP3 files USB
• Playback of WMA files USB
• Playback of WAV files USB
• Playback of FLAC files USB

Features USB

• USB port Yes, USB input with protective cover
• USB standard USB 1.1/USB 2.0 full speed
• Drive Change Yes
• Repeat function / random play Yes
• Resume Play Yes
• Playtime display Yes
• 1.5 A charging function Yes

Features Audio

• Max. output power 50 W x 4
• MOSFET Power IC Yes
• AUX input Yes, front mini jack
• preamplifier output Cinch
• Output level of the preamplifier output 2.5V
• Switchable preamplifier output REAR / SUBWOOFER Yes
• Subwoofer reference level setting Yes
• 2-way crossover Yes
• 3-way crossover (bi-amp connection) Yes
• Balance/Fader Yes
• Loudness Control Off / LV1/ LV2
• Bass Boost circuit Off/+1/+2/+3/+4/+5
• Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
• Digital sound processor (DSP) integrated Yes
• runtime correction Yes
• High and low pass filter Yes
• Speaker Size Control Yes
• Sound Reconstruction (Sound Tuning System) Yes
• Space Enhancer Yes
• Realizer Ja
• Stage EQ Yes
• Drive EQ (Equalizer) Yes
• Tone increase Yes

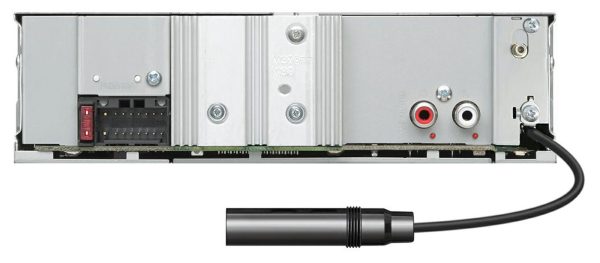

connection option

• Front USB & AUX input Yes
• Connection for OEM steering wheel remote control Yes, optional interface is required
• Power connection NEW Mitsumi to ISO
• Switching voltage connection (P. CON.) Yes
• FM/AM antenna connection
• DAB antenna connection SMB connection

Technical data tuner

• FM range: 87.5 MHz – 108 MHz (in 50 kHz steps) Yes
• FM input sensitivity 0.56μV/75 Ohm (S/N 30 dB)
• Input sensitivity (signal-to-noise ratio) 1.58 μV/75 Ohm (S/N 46 dB)
• FM transmission range 30 Hz ~ 15 kHz (± 3 dB)
• FM signal-to-noise ratio (mono) 68 dB
• FM channel separation (1 kHz) 40 dB
• MW range: 531 kHz – 1611 kHz (in 9 kHz steps) Yes
• MW input sensitivity 28.5 μV
• LW range: 153 kHz – 279 kHz (in 9 kHz steps) Yes
• LW input sensitivity 45 μV

Technical data DAB

• Band III – Frequency range 174.928 MHz – 239.2 MHz
• DAB modes I, II, III, IV
• Sensitivity – 100 dBm
• signal-to-noise ratio 90 dB
• DAB antenna connection type SMB
• Output voltage 12V (11V to 16V allowable)
• Maximum current < 100 mA

Technical data USB

• Compatibility of USB version USB 1.1 / 2.0 full speed
• file system FAT 32 / 16 / 12
• Max. current consumption 1500 mA
• MP3 decoding compliant with MPEG-1/2 Audio Layer-3
• WMA decoding consistent with Windows Media Audio
• WAV Decoding Linear – PCM Files
• FLAC decoding FLAC files up to 96kHz/24bit
• frequency range 20Hz – 20kHz
• S/N ratio 99 dB (1kHz)
• dynamic range 93 dB
• channel separation 90 dB

Technical Data Audio

• Maximum power 50 W x 4
• Output power (DIN45324, +B=14.4 V) 22 W x 4
• output level 2500 mV / 10 kOhm
• Impedance of the preamplifier output 600 Ohm
• Speaker impedance 4 Ohm ~ 8 Ohm
• Aux input frequency range 20 Hz ~ 20 kHz (±1dB)
• Max. input level AUX 1000 mV
• Impedance AUX input 30 kOhm
• 13-band graphic equalizer
• G.EQ. Frequency 62.5 / 100 / 160 / 250 / 400 / 630 / 1k / 1k6 / 2k5 / 4k / 6k3 / 10k / 16k
• G.EQ. Gain (dB) -7 / … / +7
• Subwoofer level (dB) -50 dB to +10 dB

scope of delivery

• removal tool 2 pieces
• Cover frame Yes
• Installation frame Yes
• DC cable (Mitsumi to ISO) 20 cm
• Multilingual user manual includes Quick Help
• Downloadable user manual Yes

Technical Data General

• Operating voltage 14.4 V (10.5 ~ 16 V permissible)
• Max. current consumption 10A
• Dimensions (W x H x D) 182 x 53 x 100 mm
• Weight 700 g
