Victron Energy 12V 1200W Pure Sine Wave Inverter Converts 12 volt

PIN122121400

Pure Sine

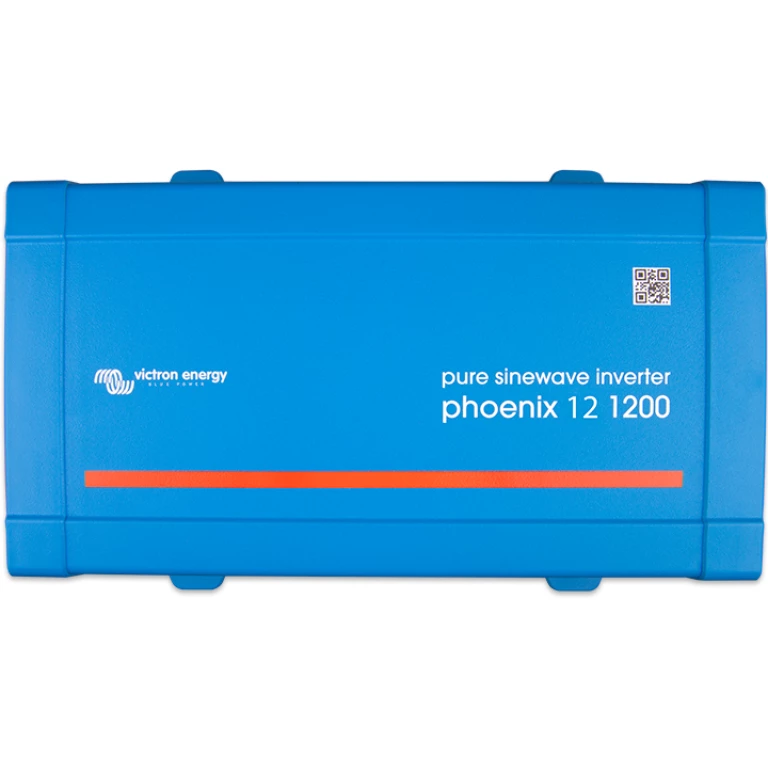

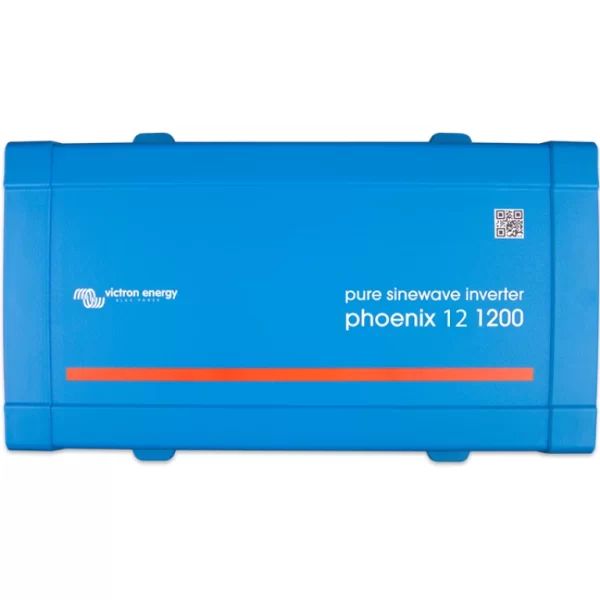

The Phoenix 12/1200 VE direct inverter allows you to power domestic equipment requiring 230V using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V, or 48V DC.

VE.Direct communication port The VE. Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)

• Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed) Fully configurable:

• Low battery voltage alarm trip and reset levels

• Low battery voltage cut-off and restart levels

• Dynamic cut-off: load dependent cut-off level

• Output voltage 210 – 245V

• Frequency 50 Hz or 60 Hz

• ECO mode on/off and ECO mode sense level Monitoring:

• In- and output voltage, % load and alarms. Proven reliability. The entire bridge plus toroidal transformer topology has proven reliable over many years.

The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power is needed to start loads such as power converters for LED lamps,

halogen lamps, or electric tools. ECO mode When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W).

Once in standby, the inverter switches on briefly (adjustable, default: every 2.5 seconds). If the load exceeds a preset level, the inverter remains on.

Remote on/off A remote on/off switch can be connected to a two-pole connector, or between the battery plus and the left-hand contact of the two-pole connector. LED diagnosis

Please see the manual for a description. Use the automatic transfer switch to transfer the load to another AC source. We recommend our Filax Automatic Transfer Switch for our low-power inverters.

The Filax features a very short switchover time (less than 20 milliseconds), so computers and other electronic equipment can continue to operate without disruption.
