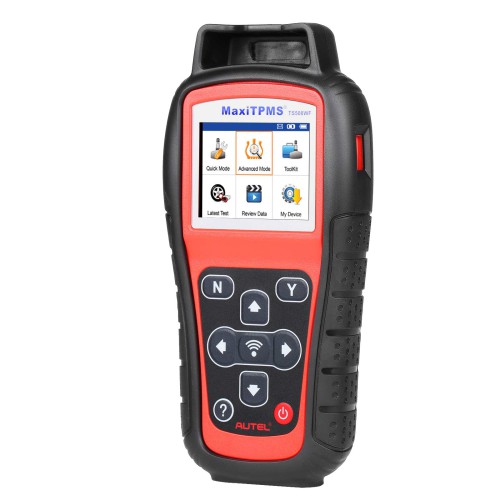

AUTEL MaxiTPMS TS508WF TPMS Relearn Tool Activate/Relearn All Sensors

+ 4x Autel Sensors ( OPTIONAL!!! )

Autel MaxiTPMS TS508WF is the first to provide Wi-Fi Updates & an all-in-one TPMS Solution for all. It is a new-generation TPMS diagnostic & service tool designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health, program MX-sensors, and conduct TPMS relearn.

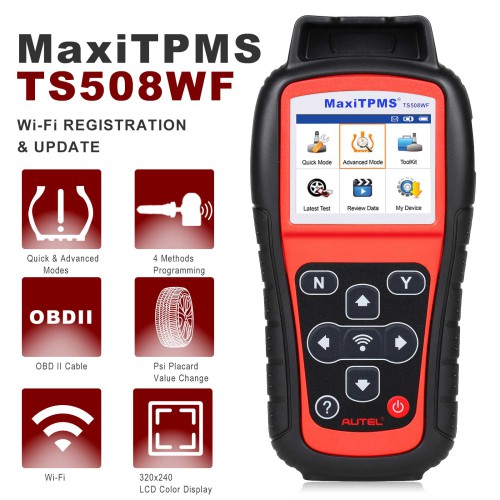

Autel MaxiTPMS TS508WF Highlights

Added Wi-Fi Connection Functions for Faster & More Convenient Software Updation by Just One Click Operation
Quick Mode & Advance Mode; Relearn by OBD function
Autel MaxiTPMS Update Instructions
Comparison among Autel MaxiTPMS Scanners
Activate TPMS sensors; Read sensor data
TPMS diagnosis, one step for a complete TPMS health check

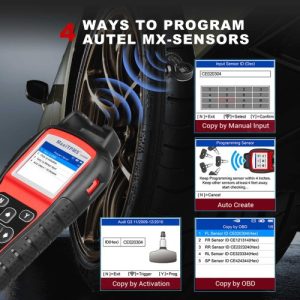

Scan TPMS sensor ID and copy ID into MX-Sensor
Read/clear TPMS DTCs; on-screen DTC description
Program MX-Sensor by auto-creating sensor ID
Read the Sensor ID by OBD and copy the ID into the MX-Sensor
Relearn the procedure guide on the tool
Covering more than 99% of models with tyre pressure systems in Asia, Europe, the United States and China.
Can read, copy, and write the tyre pressure sensor ID value.
Advanced Highlights

Autel MaxiTPMS TS508WF is an upgraded version of TS501, TS408 and TS401.

Compared to TS501, TS508WF adds Quick & Advanced Modes for faster, smarter TPMS repairs, and Tire Type/Pressure Selection for expanded TPMS services.

The Autel TS508WF TPMS Relearn Tool is compatible with 99% of vehicles equipped with TPMS systems and is widely used by both small repair shops and individual car owners. This diagnostic tool features three TPMS position-relearn methods that, depending on the car model, are comparable to OE-level performance. The MaxiTPMS TS508WF provides detailed on-screen instructions to simplify the process.

1. Stationary Relearn**: This method requires the vehicle to be placed in “Learn Mode,” and you must follow the on-screen instructions to complete the relearn process.

2. Automatic Relearn**: For some vehicles, the relearn function can be completed automatically while driving, making it relatively easy to perform a complete set of sensor replacement operations on your own.

3. OBD Relearn**: The OBD relearn function allows the TS508 TPMS Relearn Tool to directly write TPMS sensor IDs to the TPMS module via the OBD connector, enabling the on-board TPMS module to recognise the new sensors. This feature adds a level of convenience! (Note: The TS401 and TS408 models do not support OBD Relearn.)

The Autel TPMS Relearn Tool TS508WF can activate and reset all known TPMS sensors, as well as read and clear TPMS diagnostic trouble codes (DTCs).
