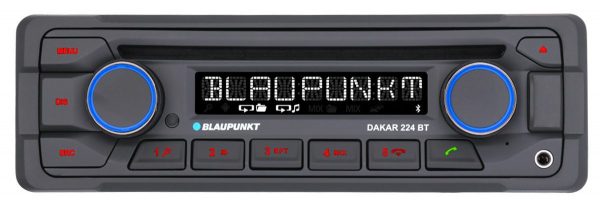

Blaupunkt 24V Dakar 224 CD Radio with Bluetooth Heavy Duty Line Work Hard & Play Hard

Functional infotainment in a new dimension!

24V Stereo

Resilient, easy to use and uncompromising in terms of quality: features currently requested by drivers

of commercial vehicles on a radio. The new Blaupunkt Heavy Duty Line fulfils these requirements in the 12 Volt or the 24 Volt segment.

A CD drive protected against shocks and vibrations allows unrestricted enjoyment of music even off the streets.

All modern USB media can be conveniently connected and played. And thanks to fewer and larger rubberized station buttons,

operating is always intuitive and easy. Our well-thought-out concept goes into every detail: stored radio stations are retained,

even if the vehicle battery is disconnected during maintenance work.

Radio

CODEM IV High-End Tuner
FM (RDS), AM (MW/LW) Tuner
RDS with AF, CT, EON, PS, PTY, REG, TA & TP
TravelStore
Display

Wide-view 9-digits DOT display
Black/white negative display
Adjustable brightness
Clock display
Bluetooth

Built-in Bluetooth 2.1 with EDR module
Hands-free calling, uploading phone book and audio-streaming
Profile: HFP, PBAP, A2DP, AVRCP, SPP
Built-in microphone + external microphone
Key phone functions: accept, hang up, reject call and redail
Twin connect
Navigation audio-mix
Media Player

Audio playback from USB/Disc
Audio playback formats: MP3, WMA
Two encoder Blaupunkt comfort browsing with ID-tag2, file & folder
Fast media reading from USB
Data Carrier

CD, CD-DA, CD-R, CD-RW, USB
Input

Front USB (standard A-type)
Rear USB (standard A-type)
Front aux-in
Programmable steering wheel control (SWC)
Telephone mute
Equalizer / Amplifier

3-band semi-parametric equalizer
X-Bass function
3 sound presets (rock, pop, classic)
4-channel preamp-out (2V)
Subwoofer-out
4 x 50-watt max. power
General

24-volt power supply
Fix panel
Permanent station memory
IR remote control included
Red button illumination
Rubberized preset buttons
Rubberized frame
Anti-reflective front panel surface
Software-update via USB
High-End Codem Automotive Tuner
FM (RDS), AM (MW/LW)
Heavy Duty Design
The twin-Encoder concept for fast and comfortable folder/file browsing
Playback formats: MP3, WMA
Fast playback from USB
Selectable display modes (ID3-Tags, folder/playtime, clock, all mode)
Data carrier: CD-DA, CD-R, CD-RW, USB
9-digit high-grade wide-angle display plus status icons
Built-in Bluetooth (HFP, A2DP, PBAP, SPP)
Twin connect
Navigation Audio mix
Built-in microphone + external mic connector
Front USB (Standard A-type)
Rear USB (Standard A-type)
Front Aux-in
Steering wheel control input (programmable)
4 x 50 Watt max. + 4-channel preamp-out
Separate Sub-Out (var. gain/frequency)
3-band, semi-parametric Equalizer
Sound presets (Rock, Pop, Classic)
X-bass
24 V operating voltage
