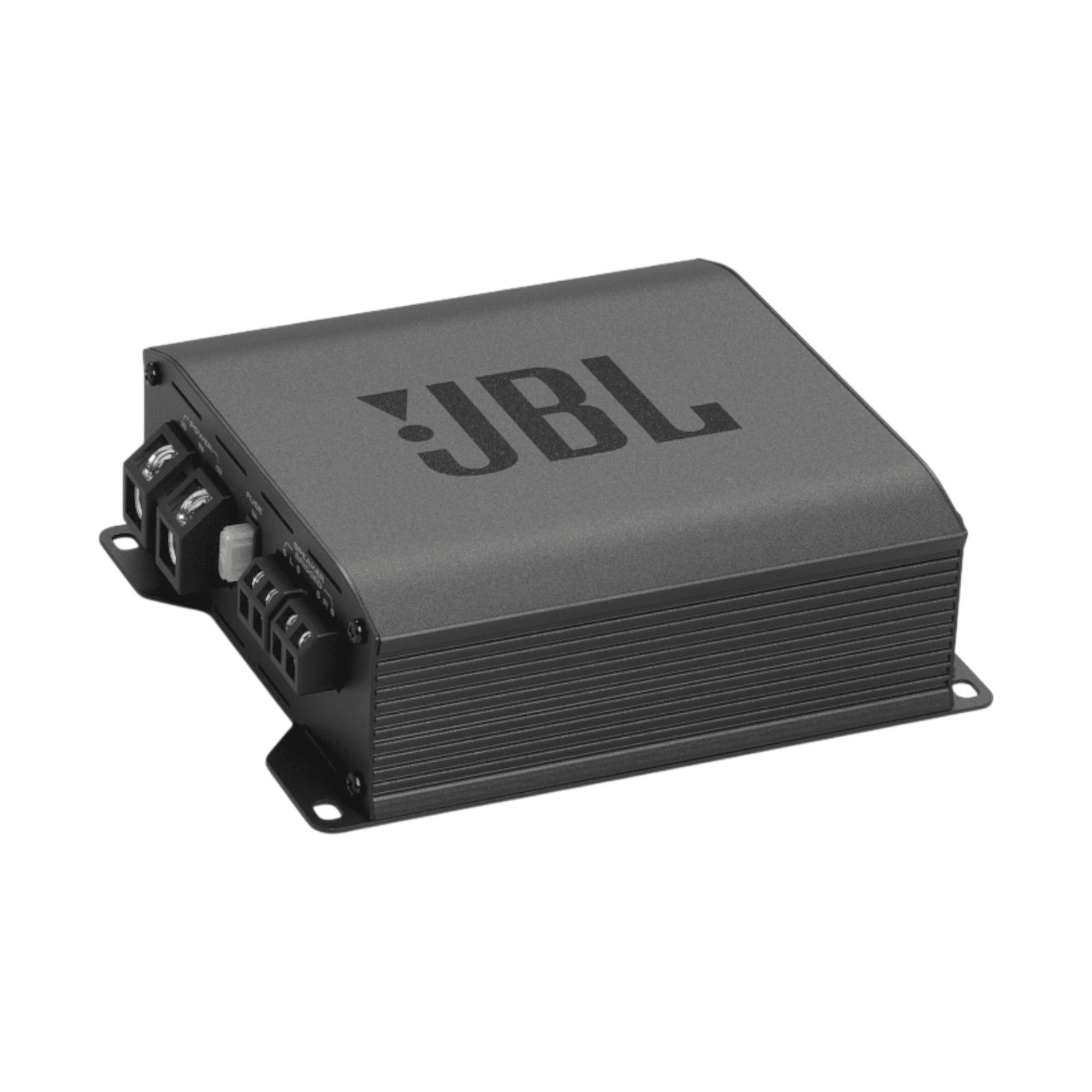

JBL Stage GT 80021 2CH Amplifier

JBL Stage GT 80021

Compact 2-channel amplifier with JBL power

The JBL Stage GT 80021 is a powerful, dual-channel Class-D amplifier. Its compact size makes it easy to fit in any vehicle while still delivering impressive performance. Choose a stereo setup or bridge the channels for subwoofer use. Adjustable filters and bass EQ allow you to perfectly tailor the sound to your setup.

Key Specifications

• Maximum power: 800W peak
• RMS power: 130W x 2 @ 2 ohm / 80W x 2 @ 4 ohm / 260W x 1 @ 4 ohm (bridged)
• Frequency response: 20Hz – 20kHz ±1dB
• Total harmonic distortion (THD+N): 1%
• Input sensitivity: 0.2V – 5V (low); 1V – 25V (high)

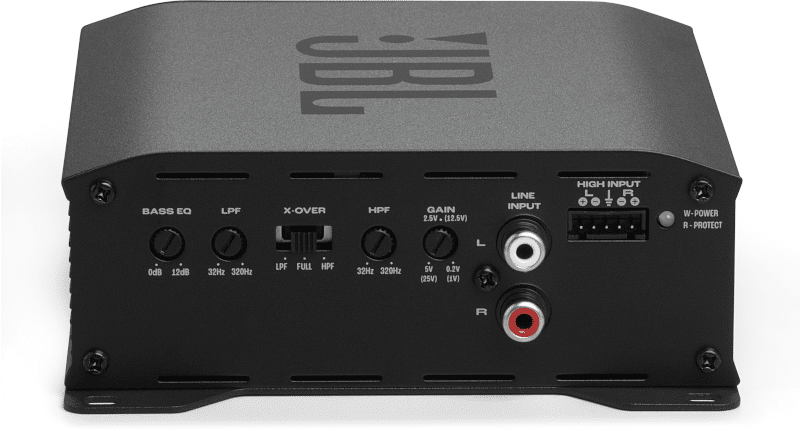

• Adjustable bass EQ: 0–12dB at 45Hz
• High/Low-pass filters: 32Hz – 320Hz (adjustable)
• Protection: against short circuit, over/under voltage and overheating
• Supply voltage: 9V – 16V
• Fuse: 1x 25A

What’s in the box?

• 1x JBL Stage GT 80021 amplifier
• 2x Spare fuse
• 1x High-level input cable
• 4x Mounting screw with washer
• 2x Allen key
• 2x JBL sticker
• 1x QR code for manual
• 1x Safety Instruction
