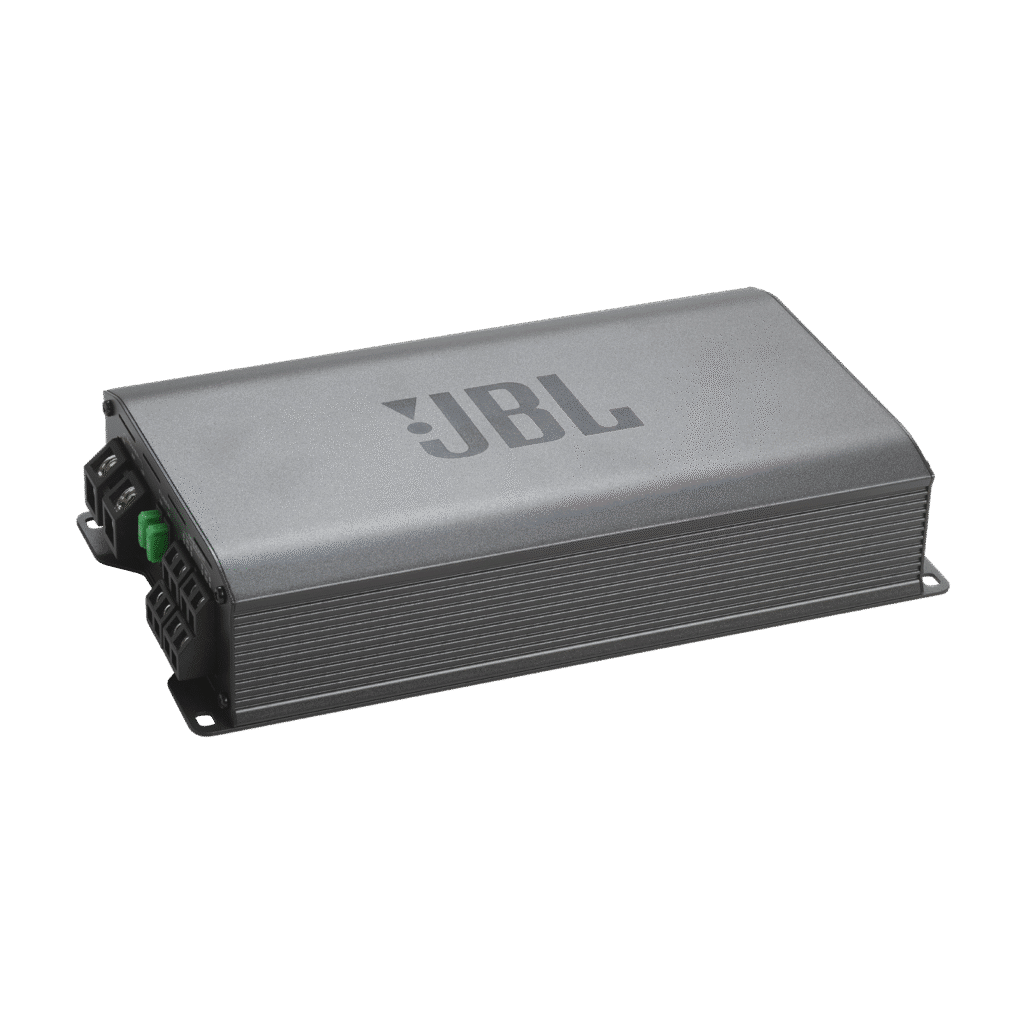

JBL Stage GT 90041 4CH Amplifier

JBL Stage GT 90041

High-power 4-channel amplifier for any audio setup

The JBL Stage GT 90041 is a powerful and versatile 4-channel amplifier. Thanks to its bridge capabilities, it’s suitable for both complete speaker setups and subwoofer use. You get complete control over the sound with adjustable filters and bass boost. Compact, reliable, and ready for any system.

Key Specifications

• Maximum power: 1480W peak
• RMS power: 130W x 4 @ 2 ohm / 90W x 4 @ 4 ohm / 260W x 2 @ 4 ohm (bridged)
• Frequency response: 20Hz – 20kHz ±1dB
• Total harmonic distortion (THD+N): 1%
• Input sensitivity: 0.2V – 5V (low); 1V – 25V (high)
• Adjustable bass EQ: 0–12dB at 45Hz
• High/Low-pass filters: 32Hz – 320Hz (adjustable)
• Protection: against short circuit, over/under voltage and overheating
• Supply voltage: 9V – 16V
• Fuses: 2x 30A

What’s in the box?

• 1x JBL Stage GT 90041 amplifier
• 2x Spare fuse
• 2x High-level input cable
• 4x Mounting screw with washer
• 2x Allen key
• 2x JBL sticker
• 1x QR code for manual
• 1x Safety Instruction
