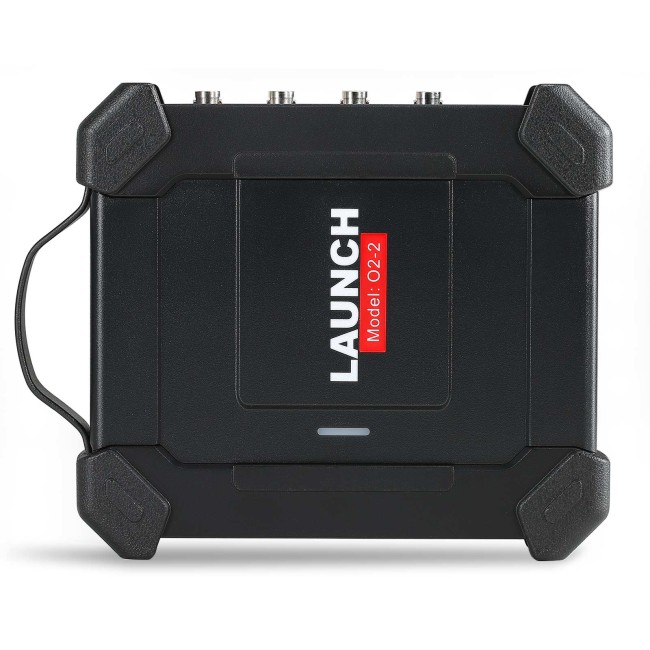

Launch X431 O2-2 Scopebox Oscilloscope 4 Channel 100MHz

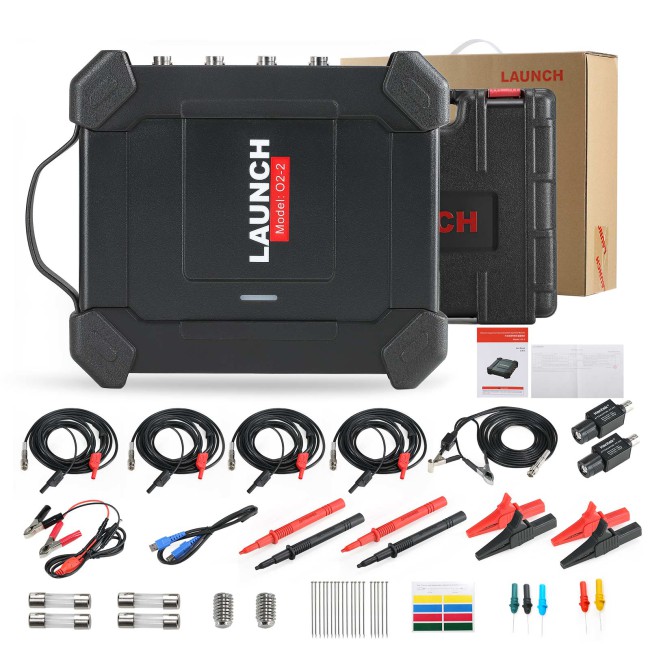

Launch X431 O2-2 Scopebox Oscilloscope 4 Channel 100MHz - Image 2

Launch X431 O2-2 Scopebox Oscilloscope 4 Channel 100MHz

Compare

Launch X431 O2-2 Scopebox Oscilloscope 4 Channel 100MHz

€690.00 including 23% VAT & Free Shipping

Compare

Launch X431 O2-2 Scopebox Oscilloscope 4 Channel 100MHz

Channels 4
Bandwidth 100 MHz
Rasing time less than 3.5 ns (typical)

The Launch O2-2 oscilloscope is stable, durable and portable.

Launch O2-2 works with:
1. Pad VII, Pad V, PRO3S+ SmartLink HD, PRO3 V+ Elite, PRO5
2. DBScar VII Device
X431 device: X431 Pro3 APEX, PRO DYNO, PROS V5.0, X431 PRO TT, V V5.0, PRO3S+ V5.0
IMMO Series: IMMO Elite, IMMO Plus
Creader Series: CRP919X BT, CRP919E BT

LAUNCH O2-2 Scopebox is a versatile, easy-to-use add-on module that can detect high-level faults in electrical components, including sensors, actuators, and circuits. By integrating with the X-431 series scan tools via the O2-2 application, it delivers accurate, conclusive diagnostic fault codes that enable the shop and technician to expand the functionality of their scan tools.



Launch O2-2 Scopebox Features:

  • Features the ability to record and playback high-resolution waveform data for future analysis.
  • One key enabling function allows users to capture a particular waveform, which makes the process 70% more efficient as compared to other scopes.
  • Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.
  • Ability to input names and characters directly by clicking on the virtual keyboard. This operation streamlines the process and contributes to 90% efficiency.
  • Use the zoom in/out feature to review precise details.
  • Customizable personal system settings that can be saved as configuration files for viewing.
  • The self-calibration function optimises the oscilloscope signal path for maximum measurement accuracy.
  • Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high-level waveform analysis.
  • Multiple automotive tests include circuits, sensors, actuators, ignition tests and more.
  • Multi-language user interface
  • USB SunC data transfer to external devices such as laptops, tablets, etc.

Launch O2-2 Scopebox Function:
Provides a range of testing applications for automotive parts (including circuits, sensors, actuators, ignition systems, etc.).

  • 1. Versatile and easy-to-use add-on module that can detect high-level faults in various electrical components, such as sensors, actuators and circuits.
  • 2. By integrating with the X-431 series scan tools through the O2-2 application, it provides accurate and conclusive diagnostic faults that allow the shop and technician to extend the functionality of their scan tool.
  • 3. Multiple automotive tests, including circuits, sensors, actuators, ignition tests and more.
Supports multiple vehicle preset project tests
Supports a variety of automotive preset project tests, including circuits, sensors, actuators, ignition tests, communication tests, and combination tests, and presets various parameters and specific connection methods for each test.
23 automatic measurement settings
23 automatic measurement settings are displayed on a single screen, making them clear at a glance and easy to click with a light touch. It supports one-click clearing, eliminating the tediousness of turning pages and searching multiple times, making automatic measurement easy to use and convenient.
Quick trigger source switching
Supports edge, pulse and other triggers. Simple, intuitive trigger settings and fast trigger-source switching make the most challenging part of oscilloscope application extremely easy.
Quickly create waveform preset parameters with one click
When testing waveforms, you can save the current interface settings as waveform preset parameters with a single click. When testing similar waveforms later, you can load the preset parameters directly without re-entering settings.
Quickly save waveforms with one click.
Quickly save the waveform displayed on the screen with a single click, and automatically save it in the specified format. It can be used directly as a reference channel waveform for later display.
Convenient cursor operation
Turn on the horizontal and vertical cursors with a single click each. Each cursor can be dragged independently, and cursor tracking is also directly implemented through simple highlight touches, improving overall efficiency by more than 80%.
Support cursor/phase ruler changes accordingly
When the waveform is zoomed in/out, the cursor and phase scale can change accordingly, keeping the measurement range unchanged.
Supports 2-point touch; the waveform can be zoomed in or out vertically or horizontally
Drag horizontally or vertically with 2 points to zoom in or out on the waveform horizontally or vertically.
Support demonstration function
Preset sine waveforms to demonstrate standard functions without connecting an oscilloscope.
Supports waveform math operations
Supports addition, subtraction, multiplication and division calculations of two-channel waveforms, in addition to fast Fourier transform.

The menu includes the following options:
Measure: It provides 23 parametric measurement items.
Save: It allows you to save the current waveform as a reference waveform for future comparison.
Display: Sets the waveform display mode.
UserSetting: The following items are available: storage depth, factory reset, self-adjust (self-calibration), and save & recovery.
About: Displays the detailed information of the app.
