 7inch 12V/24V Monitor Screen CS-PS027
Key Specification:
Additional Specification:
Approvals & Certifications:
Box Contents:
Date Created:
Specification Sheet
Number:
18/05/21

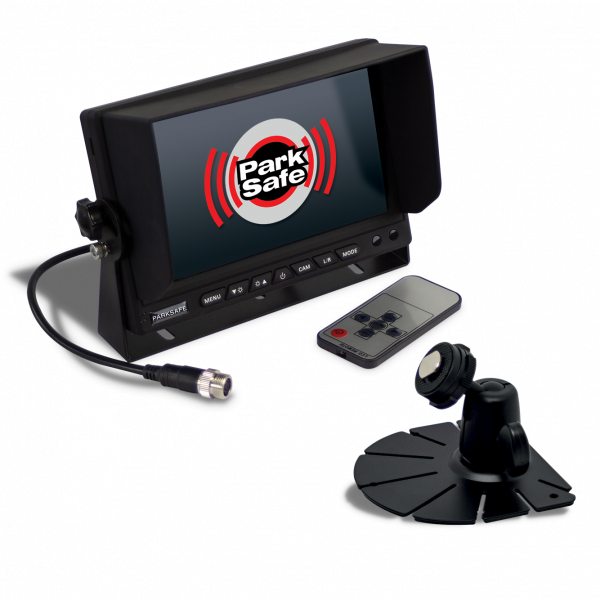

7″ D1 2 Channel Monitor with Fan and U Bracket PS027
The PS027 D1 universal dash mount monitor has 2 aviation 4pin
inputs for cameras.
• Power: 9 – 36v DC
• Screen Size: 7″ Screen
• Setting with buttons or IR remote control
• Video In: 2 Aviation 4 pin connections (2 Channels)
• Features: Parking lines and trigger delay
• Resolution: 800 x 480 (RGB)
• Mounting Methods: Fan bracket & U bracket
• Connection: 4 Pin
• Cable length: 2M
• Power Consumption: 0.4 Amp
• Dimensions: 185mm (W) x 120mm (H) x 25mm (D)
• Built in audio speaker
• Operating Temp: -20 to +70ºC
