TODPON Phoenix Lite 3 Automotive Diagnostic Tool
Free Delivery in Ireland. All orders are shipped from Ireland, 3-7days, % 23% VAT invoice included.
The Phoenix Lite 3 is a compact diagnostic scanner specifically designed for automotive professionals, enthusiasts, and small repair shops. It caters to the diverse needs of the automotive industry, offering exceptional functionality at an affordable price. Notable features include support for the CAN-FD protocol, online coding capabilities, and topology mapping functions, making it an excellent choice for a wide range of users.
Features
Precision Topology Mapping
- Enhancing communication efficiency and troubleshooting accuracy, the Phoenix Lite 3 offers a comprehensive depiction of the vehicle’s systems and status. With its clear and detailed layout, it facilitates the understanding of the communication structure between modules, enabling swift problem localisation and isolation.
CAN-FD Protocol Supported
- Supporting the cutting-edge CAN-FD protocol, this automobile diagnostic tool is compatible with more modern vehicles (2020 and newer GM and Chrysler Models).
FCA Gateway Access
- Equipped with support for FCA Secure Gateway, facilitating seamless complete diagnostics on more contemporary cars, such as Fiat, without the need for separate adapters.
ECU Online Coding
- The advanced ECU coding capabilities enable you to unlock hidden functions and disable unnecessary features effectively, optimise engine performance and improve fuel efficiency, ensure seamless integration with ECUs, and customise the vehicle to meet diverse demands.
Bi-Directional Control
- Enables the swift execution of various active tests. This feature allows you to assess component integrity and functionality effectively, facilitating the rapid identification of fault causes for faster and more efficient repairs.
OE-Level All System Diagnostics
- Phoenix Lite 3 offers comprehensive full-system diagnostics for 168 makes and models, providing an in-depth understanding of all vehicle systems, from crucial components like ABS, SRS, Engine, and transmission to essential modules such as ECM, PCM, EPS, PDM, TPM, BCM, and more.
35 Maintenance Functions
- A comprehensive coverage of 35 maintenance services to cover essential tasks such as Oil resets, EBP resets, Suspension resets, and more. Additionally, it offers support for specialised functions within specific systems, including Add/Replace Key Fobs, Battery Sensor Module learning, and Tire Pressure Sensors Learning.
Expanded Add-on Tools
- Integrates with add-on modules for extended functionality, offering broad compatibility with TOPDON’s professional products. These include BT Mobile Pros, Oscilloscope, TC001, Phoenix ADAS, T-Ninja Box, and more.
Effortless Diagnostics Anywhere
- Wireless diagnostics via VCI empower flexible operation within the range of Bluetooth connectivity. With its compact body, this diagnostic tool is portable and easy to hold in hand, allowing for diagnosis anywhere, thereby saving time and effort.
User-friendly Operation
- AutoVIN reads vehicle information automatically, VAG guide function provides detailed step-by-step guidance eliminating unnecessary operations, and one-click codes reading and clearing for streamlined workflow.
Data Reporting and Sharing
- Data streams are presented in interpretable graphs for intuitive monitoring, and 4 data streams can be displayed on a single interface for comparison. Detailed diagnostic reports can be generated and shared for data backup.
35+ MAINTENANCE SERVICES
The Phoenix Lite 3 offers over 35 maintenance reset functions, providing comprehensive solutions for a wide range of vehicle maintenance tasks. Here’s a breakdown of some key reset functions available:
1. Oil Reset – Resets the engine oil life system after an oil change.
2. EPB Reset – Electronic Parking Brake reset to safely replace and calibrate brake pads.
3. Battery Reset – Registers new battery details to optimise performance.
4. DPF Regeneration – Diesel Particulate Filter regeneration for cleaner emissions.
5. ABS Bleeding – Removes air from the ABS system to ensure safe braking.
6. Throttle Adaptation – Recalibrates the throttle body for smooth idling.
7. Steering Angle Calibration – Re-aligns the steering angle sensor.
8. Injector Coding – Codes new fuel injectors for balanced fuel injection.
9. Gearbox Reset – Resets the transmission for smooth shifting.
10. TPMS Reset – Reset the Tire Pressure Monitoring System after tire service.
11. Airbag Reset – Resets the airbag system after repairs.
12. BMS Reset – Battery Management System reset to recognise a new battery;
13. A/F Reset – Air-Fuel ratio adaptation for better fuel efficiency;
14. Suspension Calibration – Calibrates the air suspension system;
15. Sunroof Initialisation – Resets the sunroof’s operational memory;
16. Seat Calibration – Recalibrates power seats;
17. Windows Calibration – Re-aligns power windows;
18. EGR Adaptation – Resets Exhaust Gas Recirculation to control emissions;
19. Transmission Adaptation – Re-adapts shifting points for transmission;
20. Headlight Adjustment – Adjusts and aligns headlights;
21. AC System Reset – Resets the climate control system.
22. Language Change – Adjusts the onboard display language;
23. Odometer Reset – Allows for odometer calibration to ensure accurate mileage;
24. ABS Reset – Resets the Anti-lock Braking System;
25. Engine Adaptation Reset – Re-adapts engine parameters;
26. Immobiliser Reset – Resets the security system after key replacement;
27. Tire Reset – Resets tire-related settings after replacements;
28. AdBlue Reset – Resets the diesel exhaust fluid system.
29. SAS Calibration – Recalibrates the Steering Angle Sensor after alignment;
30. EVAP Reset – Resets the evaporative emissions system for emissions control;
31. Gear Learning – Relearns gear shifting points;
32. Stop/Start Reset – Resets the engine stop/start system;
33. Transport Mode – Enables or disables transport mode;
34. Coolant Bleeding – Removes air from the cooling system;
35. Clutch Adaptation – Re-calibrates the clutch in manual transmission vehicles.
These reset functions empower the Phoenix Lite 3 to handle a wide range of maintenance tasks, making it a versatile and indispensable tool for automotive professionals.

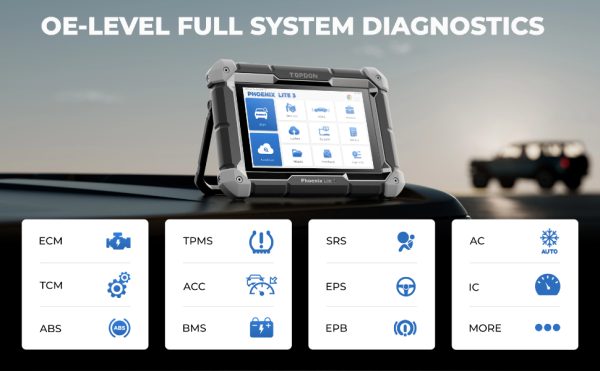

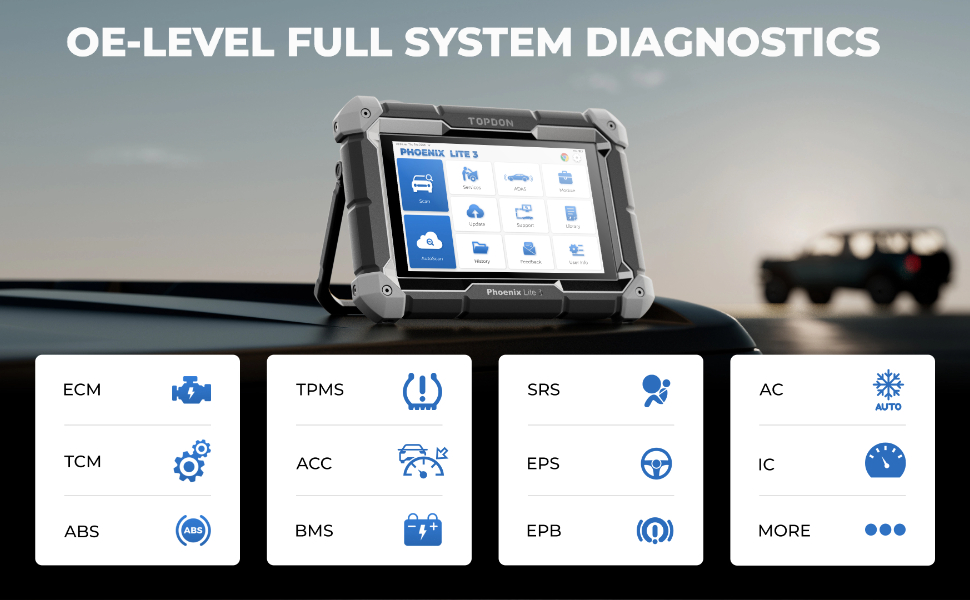

OE-LEVEL FULL SYSTEM DIAGNOSTICS
The Topdon Phoenix Lite3 automotive diagnostic scan tool performs deeper dealer-level diagnostics previously only available to dealerships. 2025 Phoenix Lite 3 OBD2 scan tool scan all available vehicle modules like ABS, SRS, Engine, Transmission, Body, IMMO, Chassis, Suspension, HVAC, Lighting System, Radio Systems to locate faults and assess vehicle condition accurately: Read/Clear codes, show DTC, turn off Check Engine Light(MIL), ABS/ Airbag/ Transmission war-ning lights, reset monitors, etc.
· View Live Data Stream in Text or Graph: Retrieves and displays live data and parameters from the vehicle’s ECU, including misfire data, engine RPM, CAM/CMP delay, mass flow sensor data, transmission oil temperature, long/short fuel trim, fuel pressure, and cylinder balance rates.
· Freeze Frame Data– Freeze error codes at the moment they occur, and you can analyse the error code cause.
· ECU Information – Provides the retrieved ECU information in detail.
· Active Test – Test vehicle components and perform specific analyses, such as EVAP tests, fuel injector balance, injector tests, ABS motor pump cycling, cooling fan tests, and tests for car windows, doors, sunroofs, and wipers.
· Complete Capabilities: Fault Codes, Live Data, Freeze Frame, Retrieve Active Tests, Resets, Relearns, Matching, Adaptations, Calibrations, Initialisation, etc.
Bi-Directional Control: Phoenix Lite 3 enables you to send control commands directly to verify the status of system components effortlessly in seconds.
- Door Locking Test;
- Injector Buzz Test.
- Mirrors Auto Fold/Unfold;
- Windscreen Wipers Turn on/off;
- Modulate thro-ttle;
- Open/close windows & doors;
- Work on relays, injectors, coils, solenoids, valves, actuators, headlamps, etc.
Specifications

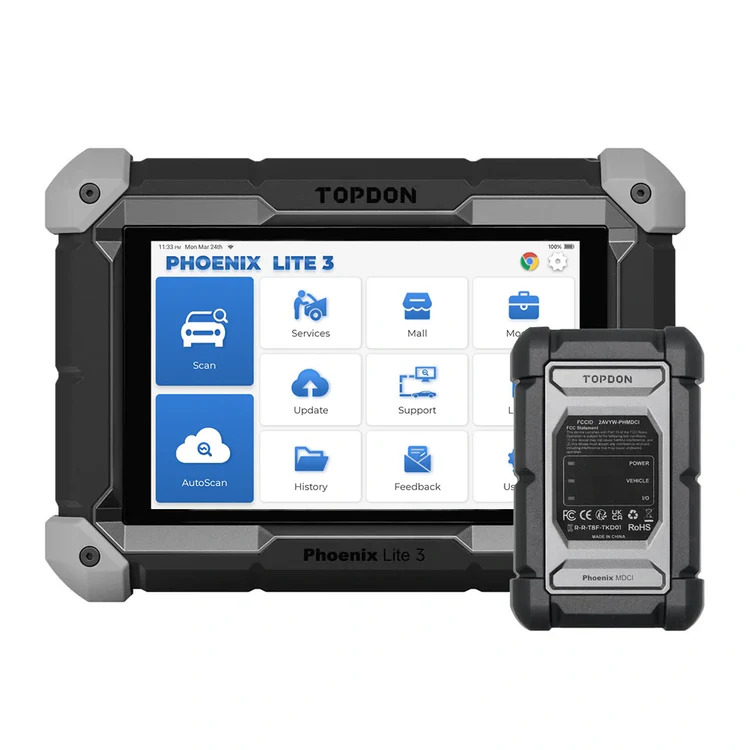

Phoenix Lite 3:
- Screen Size: LCD 8-Inch, 1280*800
- CPU: 4-Core Processor, 2.0 GHz
- Operating System: Android 10.0
- RAM: 2G
- ROM: 64G
- Battery: 12600 mAh / 3.8V
- Operating Voltage: 9~18V
- Storage Temperature: -20℃~60℃ (-4℉~140℉)
- Working Temperature:0℃~50℃ (32℉~122℉)
- LWH: 258*183*50.5 mm（10.16*7.20*1.99 inch）
- Net Weight: 1184.5 g (2.61 lb)
- Multilingual Support–25 Languages: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian,Thai
MDCI:
- Working Temperature: 14℉~122℉ (-10℃~50℃)
- Operating Voltage: 9~18V
- Working Current: ≦ 150 mAh
- Dimension: 5.00*3.22*1.42 inch (127*82*36 mm)
- Protocol Supported: CAN-FD
Packing List
- Phoenix Lite 3 * 1
- MDCI Dongle * 1
- Battery Clamps/Cable Set * 1
- Cigarette Lighter Cable * 1
- Fuse (φ5*20mm) * 4
- Fuse (φ6*30mm) * 2
- Type-C to USB Cable * 1
- Power Adaptor * 1
- OBDI Adapter BOX Transfer * 1
- OBDII Extension Cable * 1
- BZ-38 (BENZ) * 1
- TA-22 (TOYOTA) * 1
- TA-17 (TOYOTA) * 1
- G/V-12 (GM/VAZ) * 1
- B-20 (BMW) * 1
- CR-6 (CHRYSLER) * 1
- HA-3 (HONDA) * 1
- NN-14+16 (NISSAN) * 1
- M/H-12+16(MITSUBISHI/HYUNDAI) * 1
- FT-3 (FIAT) * 1
- User Manual * 1
- Package List * 1
