TOPDON TC005 Infrared Thermal Image Camera 256*192 Infrared Camera Thermogafie

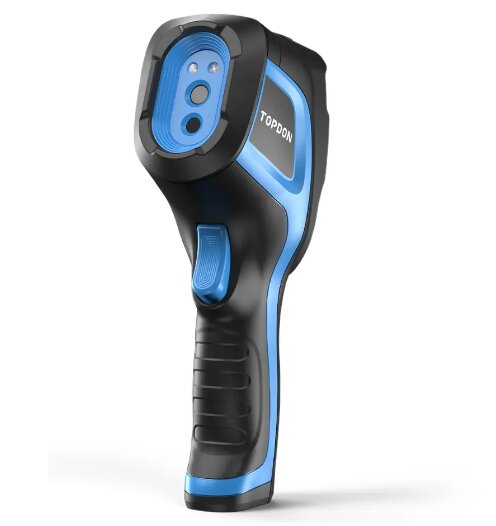

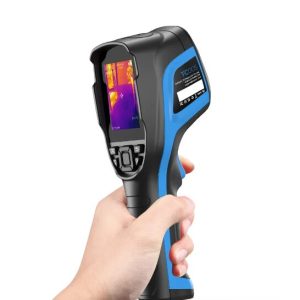

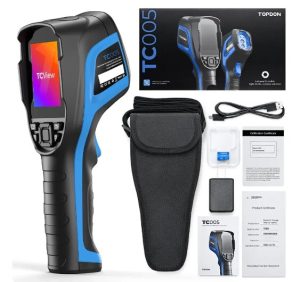

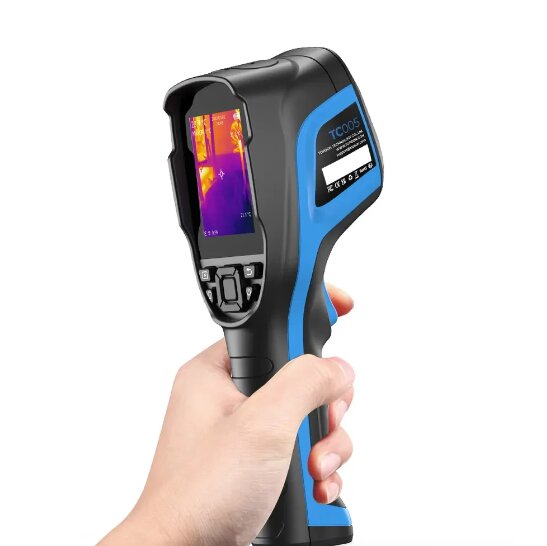

TOPDON TC005

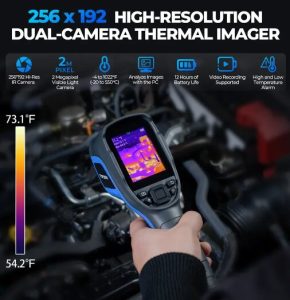

The TC005 is a handheld thermal camera that measures an expansive temperature range. From -20 °C to 550°C (- 4°F to +1022°F), it offers a 12-hour runtime. The high-resolution 256*192 pixel infrared camera lets you say goodbye to blurry images. The tool
is ready for analysis with the standalone and the PC modes, enabling users to project and upload pictures from the TC to their PC.
Added benefits of the TC005 include seven options for Pseudo-Color Display, a 2-megapixel visible light camera for overlapping images, and a picture-in-picture mode.

High Resolution & Thermal Sensitivity
The TC005 features a high-resolution thermal camera with a resolution of 256×192. This allows users to capture more details and say
goodbye to blurry images.
A high thermal sensitivity of 0.05℃ allows the TC005 to distinguish between tiny temperature differences..
Three Measurement Modes & Auto-Detection
The TC005 has three measurements to detect a centre, hot and cold spots.
The automatic detection feature allows users to view temperature differences more visually.

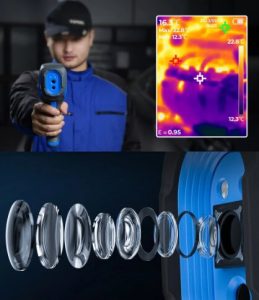

Wide FOV
The TC005 also features a wide 56° FOV to capture more objects in view quickly. There is also no need to adjust the focal length.
Wide Measurement Range & Accuracy
The TC005 features a wide temperature measurement range of -20℃ – +550℃. It can also measure temperatures with ±2℃ accuracy for precise temperature measurements.
NETD of this high-precision infrared sensor is less than 40mK, measurement accuracy is 0.1 degree, and error is less than 2%. This is to ensure the most accurate thermal readings.

Four Imaging Modes
The TC005 has four imaging modes to identify targets promptly.
These include Thermal Imaging mode, Dual Light mode, Visible Light mode, and Image in Image mode.
PC Image Analysis and Instant Projection
Professional analysis software allows users to save and share diagnostic data on a PC easily. The TC005 also supports screen projection on a PC as well.

One-Day Runtime
A powerful integrated battery allows the TC005 to have a 12-hour runtime.
Built-in Fill LED Light
A built-in LED light lets users record thermal readings without an additional light source.

Built for Last
IP54 is rated for protection against water and dust, and 2m drop-proof allows you to be more carefree while using the device.

TOPDODN TC005 Specifications
Display
2.8-inch Display
Field of View (FoV)
52.5°x 39.5°
IR Resolution (pixels)
256*192
Focal Length
3.2mm
Temperature Resolution
0.1℃
LED Light
Yes
Image Frequency
20Hz
Memory
2+16GB Memory Card
NETD
<40mK
Battery Life
12h
Object Temperature Range
-20 to 550℃
Charging Time
4h
Measurement Accuracy
±2℃ or ±2%
Waterproof Rating
IP54
Spectral Range
8 – 14μm
Drop/Shock/Vibration
Drop: 2m; Shock: 25g(IEC 60068-2-27); Vibration: 2.5g(IEC60068-2-6)
Size&Weight
275*160*120mm (10.83*6.30*4.72 inch)
1.050kg
Battery Type
5000mA Built-in Battery
Certification
Measurement Report/UN38.3/DGM/CE/FCC/RoHS/KC
Service
Support OEM/ODM Services, custom logo, colour, packaging, and app. Feel Free to contact us!
Application
Household HVAC Inspection/House Inspection/Find Water Damage/Find Hidden /Building Weak Current Detection/Building HVAC Inspection/Night Petrol at Park/Electrical Panels Inspection/Night Security Petrol/Searching Animal at night/Residual fire detection and so on…
