ANCEL X7 – OBD2 Car Diagnostic Tool Full System Code Reader Automotive Scanner

Why choose the Ancel X7 OBD2 Scanner?

Full System Diagnostic: This supports all system diagnostics and an in-depth medical examination for your car, including the Drive System, Chassis System, Body System, and Electrical system.

– 10 Service Reset Functions: Oil Service Reset, EPB Brake Pads Reset, DPF Regen, ABS Bleeding, TPMS service, SAS Reset, BMS Service, Throttle Adaptation, Injector Coding, and IMMO Service (Basic Function: Add or Delete Keys).

– Active Test (Only Fit for a Few Vehicles).

– ECU Coding (Only Fit for VW/Fit for Audi).

– Full OBDII Functions: Helps you to Pass the Emission/Smog Test.

– BT Connection: Wireless Bluetooth-compatible Connection.

– Hardware: 10.1-inch Bigger Screen Android Tablet. 32GB Large Storage.

– Multi-language Supports: English, French, German, Spanish, Russian, Italian, Portuguese, Polish, Dutch…

– WIFI Update: 2-Year Free Update Via Wifi

– Other Features: Auto VIN & 4 in 1 Live Data Stream & One-key Diagnostic Report & Online Feedback & Remote Technical Support.



10 Special Functions:

1.Oil Reset Service:
Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.
2.EPB Service:
Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
3.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion.
4.BMS service:
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
5.TPMS service
Makes sense in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.
6.DPF Service:
Allows you to carry out numerous functions to the Diesel Particulate Filter system.
TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
7.IMMO Service:
Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.
8.SAS steering angle sensor service:
helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
9.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off
10.TPS Throttle Adaptation
The throttle body is a tube containing a pivoting flat(butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car , a throttle position sensor and air flow sensor communicate with the computer , which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

Bi-directional Control / Active Test:
This ANCEL X7 bidirectional scan tool request information or command a module to perform specific tests and functions. For instance, in the case of OBD II generic information Mode 1, you can initiate a request for information from the powertrain control module, and the PCM responds by sending the information back to the scan tool for display. In addition, X7 scanner have the ability to actuate relays, injectors, coils, or perform system tests, etc.

With extensive bidirectional actuate solenoids value and actuators, X7 bidirectional scanner checks all modules in seconds the supported control modules are but not limited to:
Operate Mirror
Open/Close the Sunroof
Test Door Lock
Turn on the radiator fan
Sound horn
Test door lock actuators
Turn on interior & exterior lights
more…
Compatibility will differ from specific year and vehicle. Please check compatibility if necessary.



ECU Coding Only Fit For VW / Fit For Audi
The Coding function is used to re-flash the vehicle control modules .ANCEL X7 automotive diagnostic tool allows you to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.

ANCEL X7 car diagnostic scanner is able to modify the adaptive data for vehicle control modules after repairs or replacements of vehicle parts.
power window
llluminatedentry
warning, light control
slide roof, air conditioner
and more…
Compatibility will differ from specific year and vehicle. Please check compatibility if necessary.



Ancel X7 Full Systems Diagnoses

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.

To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;
To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;
To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;
To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;
To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;
To diagnose Light System if you see rapid signal blinking or dimming lights.
And many more …

One-key automatic diagnosis, quickly delete error codes

1.Reading Codes: Read DTCs(Diagnostic trouble codes)

2.Erasing Codes & Reset: Clear DTCs

3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.Oxygen sensor monitoring

8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9.Read Vehicle Information(VIN)

10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

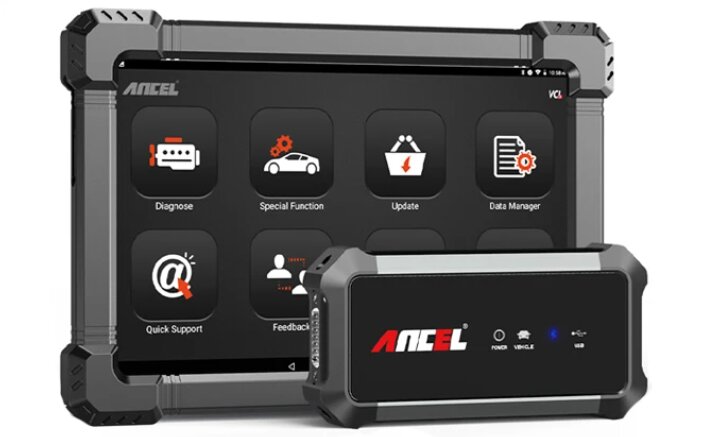

Package List:

X7 VCI Box *1
10.1 inch Tablet *1
Plastic Box *1
OBD2 Cable *1
Connection Cable*1
USB Cable *1
Charger *1
Manual *1
