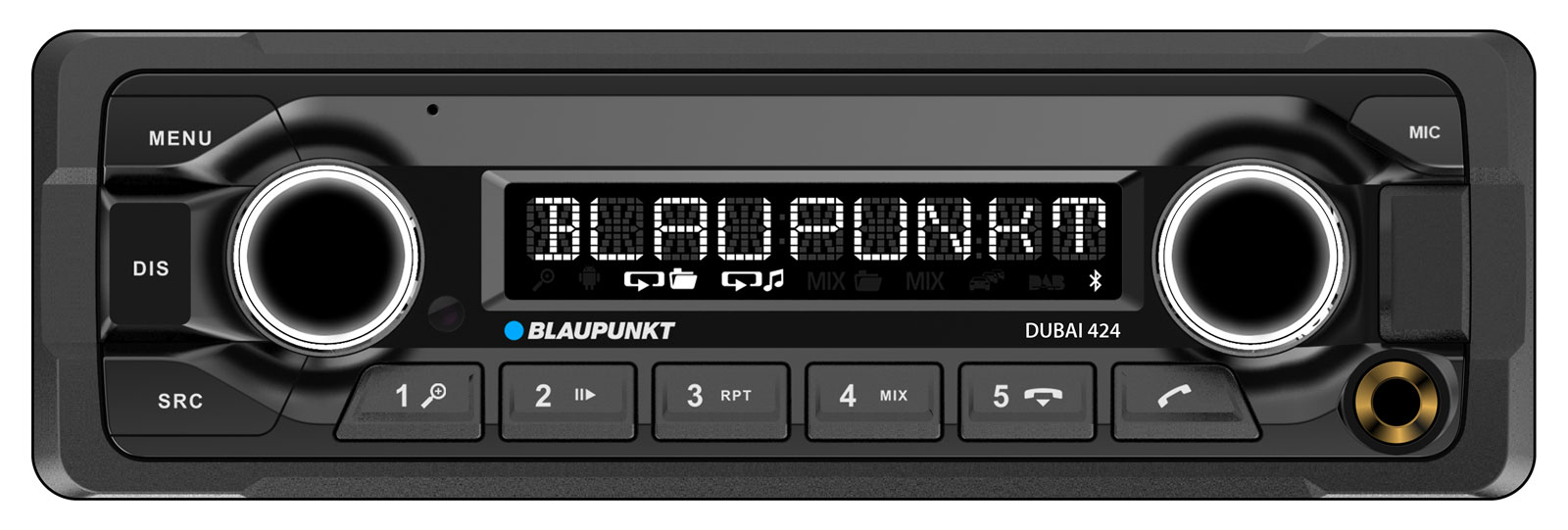

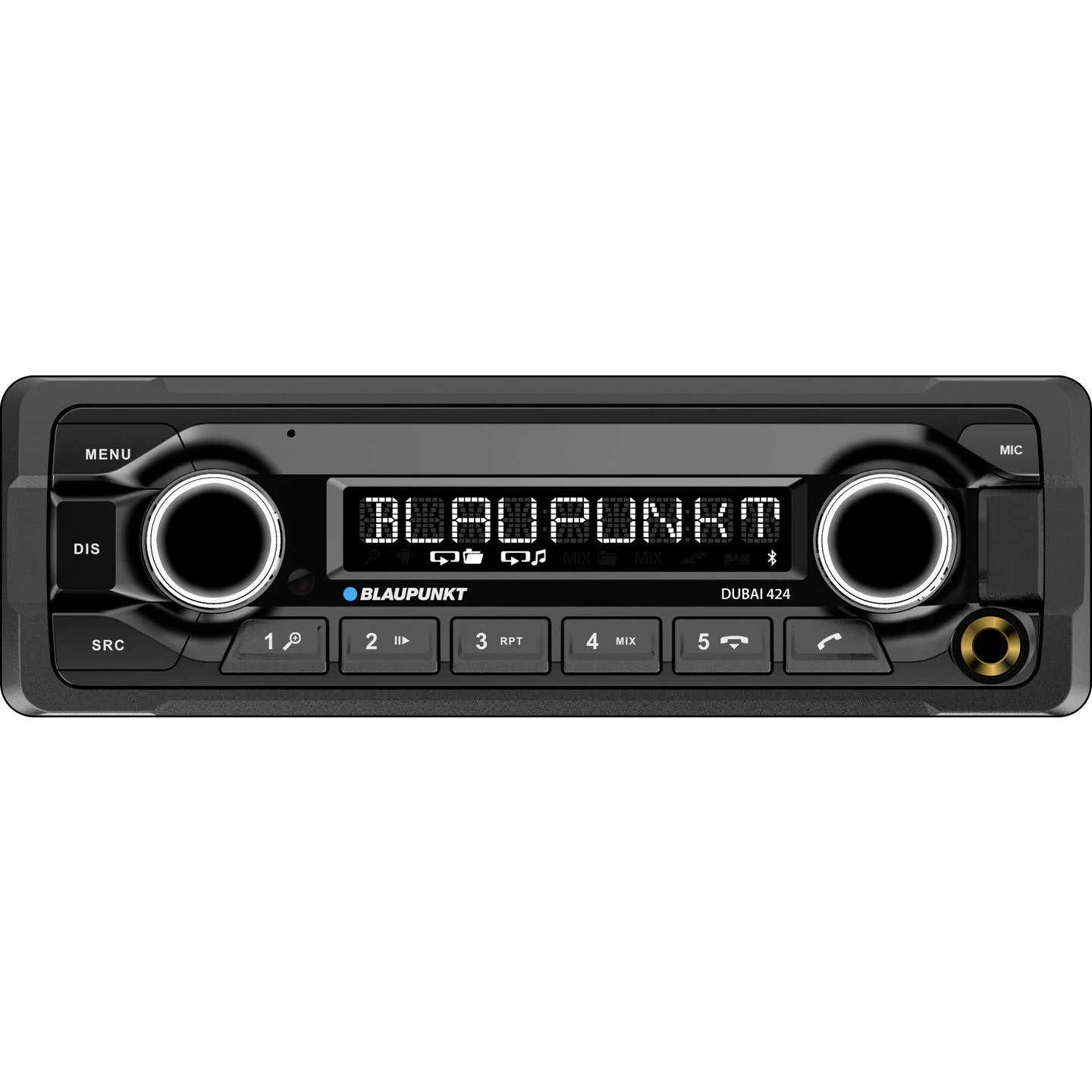

BLAUPUNKT Dubai 424 DAB BT 24V Truck Stereo with Bluetooth / USB / DAB / CD / AUX

1 DIN – 2 x PHONE Connection
BT – USB – SMARTSYNC

This 1-DIN 24V Bluetooth receiver takes audio performance and connectivity to the next level while remaining very easy to use and operate.
With Bluetooth connectivity, you can make hands-free calls and wirelessly stream music from your smartphone safely and conveniently.

Highlights

• High-End CODEM IV World Tuner
• FM, AM tuner
• 2 USB ports
• MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV support
• AUX input (3.5 mm)
• Apple iPod Support
• Bluetooth
• Telephony via internal or external microphone
• Audio streaming with title display
• Access via voice assistants (e.g. Siri, Google, Alexa)
• Semi-parametric equalizer (3 bands)
• 4-channel preamplifier output + 2 sub-outs
• 4x 50 watts
• Ultra short installation depth (only approx. 8 cm)
• Multicolour (7 colors)
• Permanent storage
• 24 volt operation
• Ignition plus detection can be deactivated
• Charging function for mobile phones

RADIO ANALOG

• Tuner type: High-end automotive tuner Blaupunkt CODEM
• World tuner (switchable): EU, Asia, USA, South America, Thailand, Japan
• Frequency bands: FM, AM
• FM frequency band: 87.5 – 108 MHz
• Frequency band MW: 531 – 1602 / 530 – 1710 kHz
• Station memory number: 15x FM, 10x AM
• Station memory levels: FM1, FM2, FMT, AM, AMT
• Station memory levels can be deactivated: FM2, FMT, AM, AMT
• Station display (PS)
• Radiotext/ Radiotext Plus (RT)
• Alternative frequency function (AF)
• Traffic information prioritisation (TA) FM
• Automatic time setting
• Regional function (REG)
• Program type identification/search (PTY) FM
• Travelstore/ Number of memory locations: 5x FMT, 5x AMT
• Band Scan/Preset Scan
• Sensitivity (FM): Two levels (lo/ dx)
• Interference suppression (FM)
• Hi-Cut (FM): multi-stage switchable
• Frequency response FM (Hz) -3 dB: 30 – 15,000

MEDIA PLAYER

• AUX rear: Cinch/RCA
• AUX-IN activation: manual, can be deactivated in the menu
• USB front: Type A, socket with dust cover
• USB rear: Type A, socket with dust cover
• Concealed/protected front inputs: USB, microphone
• Compatible formatting (USB): FAT16, FAT32, exFAT
• Maximum storage size (USB): > 128 GB
• Maximum number of files/folders (USB): > 20,000
• Playback formats: MP2, MP3, WMA, FLAC, M4A/AAC, WAV
• Display options (depending on file format): ID3V2 (Title, Artist, Album), Folder, File, Playing time
• Folder & file browsing
• iPod, iPhone control (only iAP2, Lightning/USB-C): USB front and rear
• Random play folder/media
• Repeat Title/ Folder/ All
• Fast forward/rewind with sound
• Play function: time adjustable

BLUETOOTH

• Availability/support of functions depends on the phone/app used!
• Make a phone call
• Internal microphone
• Connection option for an external microphone
• Accept/reject call
• Phone book access: Yes (max. 1000 numbers)
• Audio streaming
• Fast forward/rewind
• Play function: time adjustable
• Display options: Title, Artist, Album, Playtime
• Access to voice assistants (such as Siri, Google, Alexa)
• Auto Wake-Up on call: when radio off + ignition on, can be deactivated
• Quick pairing without PIN
• Automatic reconnection: last 5 devices
• Bluetooth Version: 5.0 LE
• Number of paired devices: Last 5
• Number of simultaneously connected devices: 1
• Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio codecs: AAC, SBC

SOUND

• Equalizer (number of bands/ design/ quality filter): 3/ semi-parametric
• Bass/Treble adjustment: +/- 7 levels
• Source-specific bass/treble adjustment
• Balance/ Fader: +/- 7 levels
• Loudness
• Sound presets: rock, pop, classical
• Speaker outputs (channels): 4
• Preamplifier outputs (channels, voltage): 4 (RCA, < 2V)
• Sub-Out: 2 (RCA, gain/frequency variable)
• Max. power: 4 x 50 watts
• Sinusoidal power at 14.4 V: 4 x 24 watts (according to DIN 45324)

GENERALLY

• Display: LCD, negative, anti-reflective, wide angle, alphanumeric/symbols
• Scrolling: Yes (once/repeating/off)
• Display illumination color: Multicolor, 7 colors (white, green, yellow, red, purple, blue, sky blue)
• Illumination color buttons: same as display
• Day/Night mode: Yes (manual/via dimmer connection)
• Night design when switched off (vehicle lights on): Yes (ON tipper lights up red)
• Brightness: Multi-level, variable (16 levels)
• Time display
• HMI Languages: English, German
• Hourly timer (automatic shutdown when ACC off): can be deactivated
• Low standby current: < 3.5 mA
• Antenna inputs: FM DIN/ ISO (adapter)
• Mute input/phone mute: ground active
• Ext. hands-free microphone connection
• Remote control: IR sensor for card remote control, compatible with old RC-10
• Steering wheel remote control (SWC): analog, programmable, pre-programmed
• Variable scan time: 4, 8, 12, 16, 60s
• Key tone: can be deactivated
• Control panel type: Fixed panel
• Color panel/decorative ring: Black/Black
• Software update: via USB
• Permanent Memory: Settings & Presets
• Demo mode
• Weight: approx. 0.6 kg
• Dimensions: 50 mm x 178 mm x 76 mm (H x W x D, case only without front), 58 mm x 187 mm x 17 mm (H x W x D, front with frame, buttons, knobs)
• Operating voltage: 24 volts (28.8 V)
• Power consumption: < 10A in operation, ACC off after 10 seconds < 3.5 mA

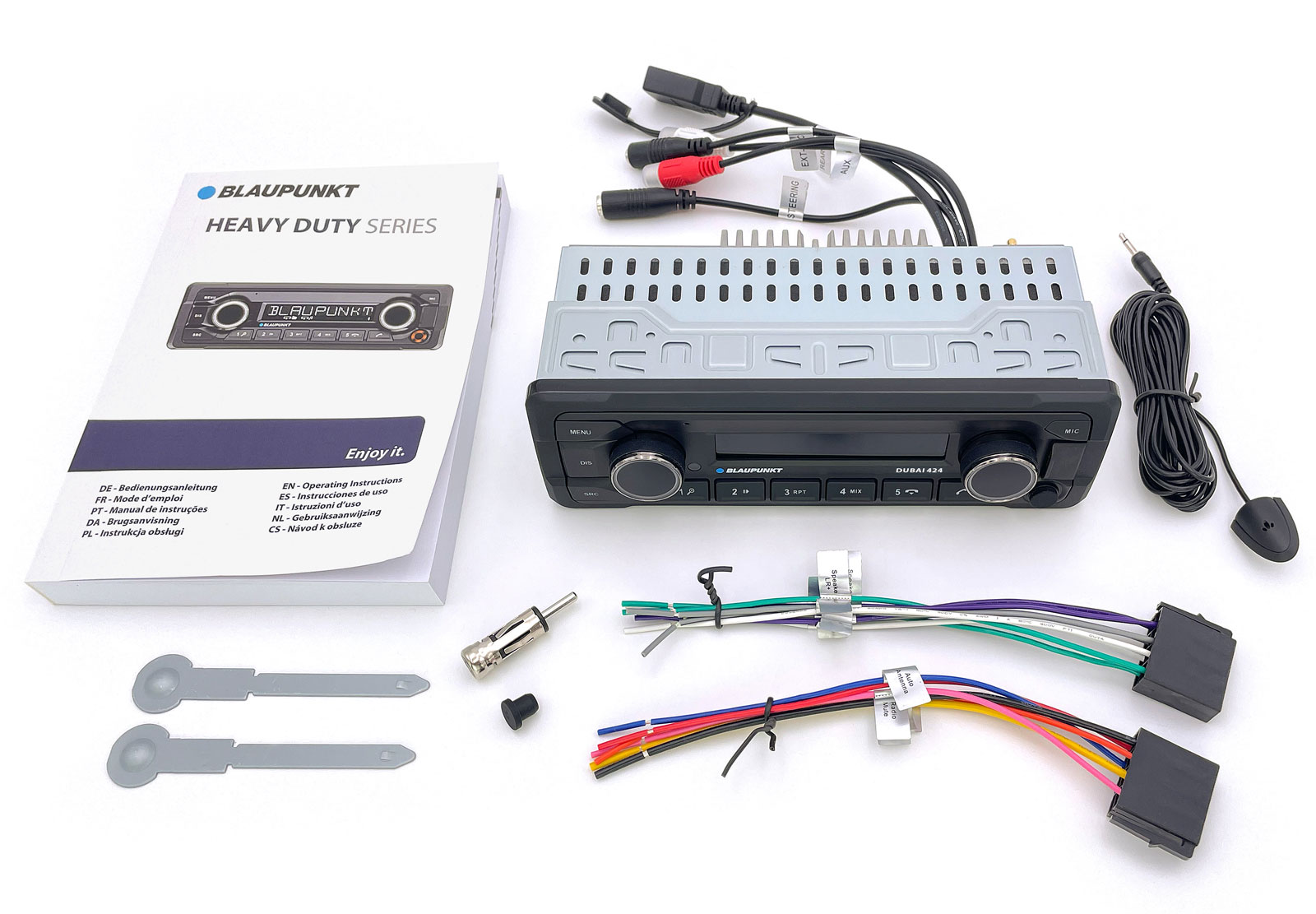

SCOPE OF DELIVERY

• Instructions: DE, EN, FR, ES, PT, IT, DA, NL, PL, CS
• External BT microphone: 5 104 020 001 001
• Release tool
• Connection cable (ISO A, B)
• Antenna adapter (DIN/ISO)
• IR remote control (credit card): Optional accessory (1 101 402 001 001)
• Wired remote control RC-24: Optional accessory (2 010 024 000 000)
