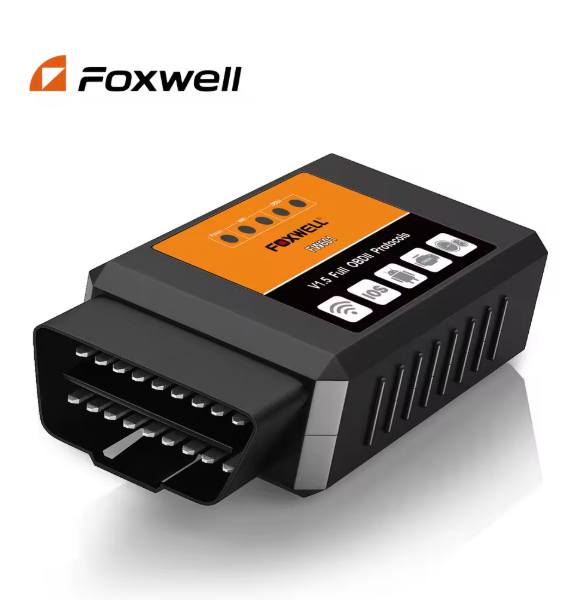

FOXWELL ELM327 – FW601 Bluetooth OBD2 Car Code Diagnostic Scanner Tool
FOXWELL FW601 Universal OBD2 WIFI Scanner for Android /IOS ODB2 OBD2 Code Reader Car Scan Tool ELM327

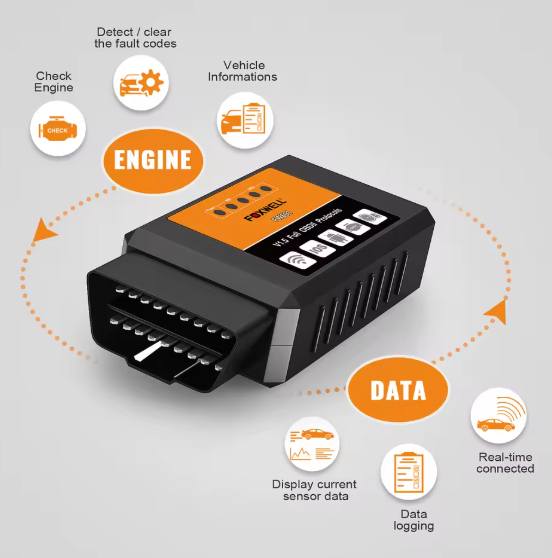

FW601 V1.5 OBD2 Scanner support Functions List:
1. Engine Lights Check&Remove
2. Calculated Load Value
3. Coolant Temperature
4. Fuel System Status
5. Vehicle Speed
6. Short-Term Fuel Trim
7. Long-Term Fuel Trim
8. Intake Manifold Pressure
9. Timing Advance
10. Intake Air Temperature
11. Air Flow Rate
12. Absolute Throttle Position
13. Oxygen sensor voltages/associated short-term fuel trims
14. Fuel System status
15. Fuel Pressure
Buyer Notice:
1. All ELM327/FW601 only read the engine errors, can not read the special errors for ABS, airbag and so on…
2. FOXWELL FW601 OBD2 ELM327 work on both Android phones and iOS phones, but can’t work on a car DVD.
FOXWELL ELM327 V1.5 Works Almost 99% Standard OBD2 Protocols
Our ELM327 – FW601 works with 12 V gasoline and diesel vehicles Only. Please check the car model from the list here at first.
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
A. SAE J1939 CAN (29bit ID,250*Kbaud)
B. USER1 CAN(11*bit ID,125*Kbaud)
C. USER2 CAN(11*bit ID,50*kbaud)
Car model list :
1. American car supports car after 1998 year
2. European car support car after 2000 year
3. Asian car support car after 2002 (Japan & Korea & China & so on)
4. Russian cars support after 2012 year (VAZ/UAZ/GAZ car)
How do you connect the phone to the ELM327/FW601?
Please download the APP first, TORQUE
Then:
A: On an Android phone：
1. Open the “settings” of your Android, and search BT from ELM327: OBDll, then input the password 1234.
2. Open your Torque–setting—OBD2 Adapter Settings—Connection Type—BT—back—Choose
BT Device—OBDII [AA:BB: CC:11:22:33].
B: On IOS Phone:
1. Open the WIFI switch
2. Find “V-LINK” Click to connect
3. Open the APP, click “Connection”, and connect the car to the Wi-Fi
