FOXWELL NT809 – All System OBD2 Bi-Directional Car Diagnostic Scanner Tool



FOXWELL NT809 Main Features:

– Bidirectional/Active Test: This feature is used to access vehicle-specific subsystems, send commands to perform specific tests and functions, and test their working status. For example, it can open/close the sunroof, turn on the radiator fan, turn the fuel pump on and off, and cycle the A/C clutch on and off.

28+ Maintenance Service Reset: This scan tool covers most modern car brands and is continually expanding its coverage.

OE-Level All System Diagnosis: It provides fast and accurate diagnosis for all available control modules (ABS, SRS, Engine, Transmission, Brake System, Suspension System, Fuel System, Light System, etc.). This helps troubleshoot the root cause quickly and clear fault codes after fixing the problem.

– No IP Limitation

– One-Touch Auto VIN Scan: It automatically identifies the vehicle and matches the proper diagnostic software for fast and precise car diagnostics.

– 3-Year Free Online Updates: WiFi One-Click Update

– FCA Autoauth

– Hardware: Responsive 7″ Touchscreen, Android 9.0 operation system, 32 GB memory

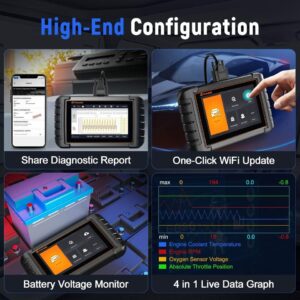

4 in 1 Live Data Stream: It shows and merges four data streams in one graph, including “Engine RPM,” “Vehicle Speed,” “Engine Coolant Temperature,” and “Absolute Throttle Position.”

– Diagnosis Report & Battery Test: It shares real-time Diagnostic Reports and monitors Battery Health.

– Feedback Function: It provides timely online technical assistance.

– Data Record & Playback: It records diagnostic troubles and allows playback for further checks or comparisons, eliminating the need to diagnose the vehicle again. Additionally, you can show this data to repair shop workers when you cannot solve these problems by yourself.

– Online Feedback & Suggestions: You can submit your issues with detailed files & attachments in real time. A Foxwell professional technician will reply to you after checking the details. Touch the icon on the top to access the submit page.

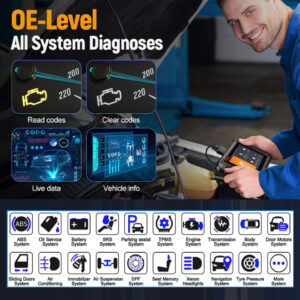

All Systems Diagnostic Scanning:

Foxwell NT809 works well on 90+ car makes and 10,000+ car models. It reads and clears codes and views live data and ECU information for deep analysis of all available systems. The detailed report reveals the exact nature of the problem to help greatly plan the budget for repairs.

All Controlled Modules Scanning and Problem Diagnostics, such as Engine System, Airbags System, ABS System, Transmission System, Brake System, Alarm System, Keyless Entry System, TPMS System, Steering System, Wheel System, Fuel System, etc.

28+ Maintenance Service Reset:

1. Oil Light Reset (for 85 brands)—This allows you to reset the service lamps for a new calculation of the engine oil life system once you have changed the oil. The service indicator system is designed to alert the driver when the vehicle is due for a service.
2. ABS Bleeding (for 65 brands)—Air will get inside the brake system after components such as callipers and wheel cylinders are replaced. The air has to be removed by bleeding the brakes to keep a firm brake pedal. Note: This function only supports vehicles that can do AUTO bleeding.
3. Battery Matching (for 43 brands)—This lets you validate a new battery after replacement, clear faults from the dashboard, and display the vehicle’s current battery details.
4. D-P-F Regeneration (for 59 brands)—Only for diesel 12V vehicles. This lets you perform forced regen cleaning to clear the blockage through continuous burning of the particulates captured in the D-P-F filter. When a regeneration cycle is completed, the D-P-F light automatically goes off.
5. SAS Match (for 87 brands)—To keep the car running straight, calibrate the steering angle sensor. After it is successfully calibrated, its fault memory is automatically cleared.
6. Injector Coding(for 61 brands): Write the new injector code into the car system for the correct cylinder injection quantity. This is for a gasoline or diesel 12V vehicle.
7. EPB Reset (for 63 brands): Help replace and reset the brake pad. This function is required to maintain the electronic braking system’s safety and efficiency.
8. TPS(for 79 brands)—When the motion range is not known, the ECU simply has no idea where to set the throttle. The ECU must know the full range of motion of the throttle in order to control the engine properly. Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT), known as a Throttle Body Alignment (TBA).
9. Replace the Airbag ECU Module(for 27 brands)- Note: It will not support the airbag crash data cleaning. Helps to match the new airbag information with the ECU and let it know the fault has been repaired.
10. OTHER: Seat Match/ A/F Reset/ Language Change/ TPMS Reset/ E-G-R Adaption/ Headlamp Reset/ Cluster/ Clutch Adaptation/ CVT/ EVAP Test/ Gear Learn/ ODS & OPDS/ Oxygen Sensor Test/ Prime Fuel Pump/ TCM Oil/ Transmission Adaptation/ T-U-R-B-O/ Windows-door/Fuel Pressure Test/G Sensor Learn

Noted: Functions vary from vehicle. Before purchasing, can consult the seller:Form: Model+Year+VIN



Foxwell NT809 Support Languages:

The device can only install 2 languages: one is English, the other one you can choose from the following :

Korea, Spanish, Portuguese, French, Swedish, English, Dutch, Japanese, Italian, German, Russian, Hungarian, Slovak, Greek

Note: English is the Default Language. If you need a different language, please send me the SN Number when you receive it (please register an account and activate the SN number first). I will help you change it.

Vehicle Support List:
Cover 108+ brands, over 10000+ vehicels, including 2021 and 2022 years.

European Coverage:
Fit For Abarth,Fit For Alfa,Fit For Astonmartin,Fit For Audi,Fit For Bentley,
Fit For Benz,Fit For Bmw,Fit For Bugatti,Fit For Citroen,Fit For Dacia,
Fit For Ferrari,Fit For Fiat,Fit For Fit Fordeu,Fit For Jaguar,Fit For Lamborghini,
Fit For Lancia,Fit For Landrover,Fit For Maserati,Fit For Maybach,Fit For Mini,
Fit For Opel,Fit For Peugeot,Fit For Porsche,Fit For Renault,Fit For Rolls-Royce,
Fit For Saab,Fit For Samsung,Fit For Seat,Fit For Skoda,Fit For Smart,Fit For Sprinter,
Fit For Vauxhall,Fit For Volvo,Fit For Vw,Fit For Vw_Cv

American Coverage:
Fit For Chrysler,Fit For Dodge,Fit For Jeep,Fit For Fit Ford,Fit For GM,Fit For GMbrazil,
Fit For FiatBrazil(Fit For Brazilian Market Only)

Asian Coverage:
Fit For Acura,Fit For Daewoo,Fit For Daihatsu,Fit For Fit Fordau,Fit For Fuso,Fit For Hino,Fit For Honda,
Fit For Hyundai,Fit For Hyundaicv,Fit For Infiniti,Fit For Isuzu,Fit For Isuzu Truck,Fit For Kia,
Fit For Lexus,Fit For Maruti,Fit For Mazda,Fit For Mitsubishi,Fit For Nissan,Fit For Perodua,Fit For Proton,
Fit For Scion,Fit For Ssangyong,Fit For Subaru,Fit For Suzuki,Fit For Toyota,Fit For GTR,Fit For Mahindra,
Fit For Tata(Fit For India Market Only)

Noted: support list just for reference only, detail model and function please consult with seller (form: model+year+VIN+main functions/Car problems/Dashboard light)

3 Years Free Update Via WIFI
Update: Get more support models and make years
All updates are optional –  functions and software can still be free to use for a lifetime

Advanced Hardware:
Screen: 7″diagonal, daylight readable colour
LCD Screen:024*600pixel
Operating system: Android 9.0
Communication interface: WiFi
Connection: Bluetooth-Compatible
Built-in battery:4000mAh
Memory+SSD Hard Drive:1G+32G

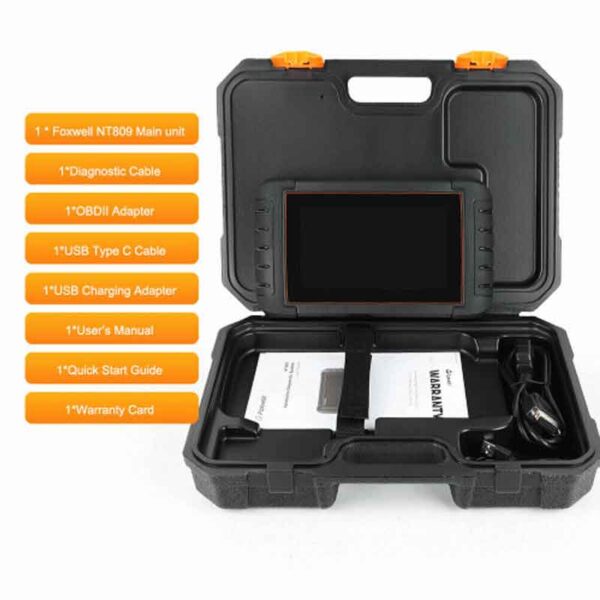

Foxwell NT809 Package List:
1 X NT809 Main Unit
1 X Diagnostic Cable
1 X OBDII Adapter
1 X USB TYPE C Cable
1 X USB Charging Adapter
1 X Quick Start Guide
1 X User’s Guide
1 X Warranty Card
