KEETEC BENE 302 Keyless Entry System with Ecu

Module BENE 302 allow selecting many functions by request of specific vehicles:

• selectable lock/unlock impulse duration
• selectable impulse duration of the trunk release
• selectable impulse duration of AUX output
• AUX output as closure windows ( VW group vehicles), or another purpose
• operational mode for control lights – normal, continuous, pulse
• control lights – it is possible use with fixed periods of blinking or by Control lights input.
• special function – remote relay (3 relay outputs controlled by remote. Usable as: control of garage doors, winch bumper, etc. )

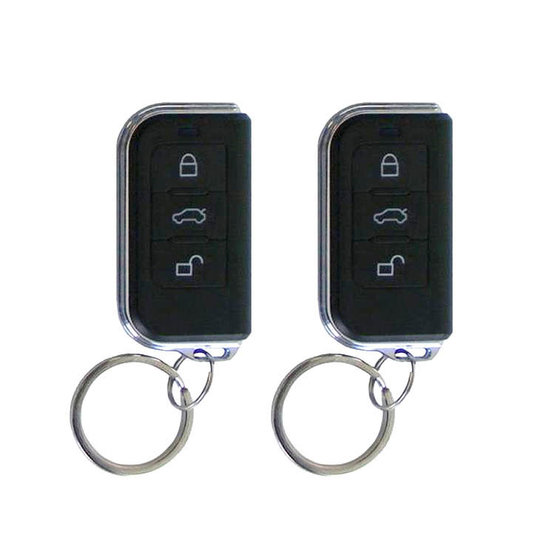

Remote controllers

• 1-way remote: 2pcs with three buttons
• range of remote controller: 50 meters
• number of programmed remote controllers: 6
• finding vehicle by remote: yes

Inputs/Outputs

• output on directional lights: yes
• output for perimeter: yes
• AUX output: yes – impulse duration selectable
• AUX output current: 200 mA
• output for trunk release: relay
• comfort closure impulse: yes

Central locking

• output type: relay
• control signal for electrical central locking: yes
• control signal for pneumatic central locking: yes
• double unlock impulse: yes
• double lock impulse: yes

Technical parameters

• operational temperature: -40°C — +80°C
• voltage supply: 10 -16 V
• RF communication: with hopping code
