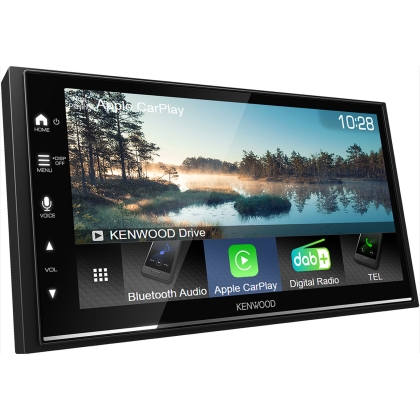

KENWOOD DMX7722DABS 6.8” Wireless CarPlay Double Din Car Stereo Multimedia
Digital media AV receiver with 6.8″ WVGA display, advanced wireless smartphone connections and DAB+ digital radio
€649.00 including 23% VAT & Free Shipping
KENWOOD DMX7722DABS
6.8” Wireless CarPlay Double Din Car Stereo Multimedia
By wirelessly connecting your smartphone and DMX7722DABS, your driving time will be more convenient and enjoyable: Safe, intelligent and comprehensive control with Apple CarPlay™ and Android Auto™ and USB mirroring allows you to display and control your Android smartphone on the screen of the KENWOOD- receiver. Enjoy the optimal sound performance with 13-band graphic EQ and time adjustment, and an optional rearview camera increases safety when reversing and observing behind your vehicle. Built-in camera input & adjustable parking guidelines add to the effectiveness.
Main properties
- 6.8-inch WVGA capacitive touch panel with sharp, high-contrast images, vivid colours and wide viewing angles.
- Built-in Wi-Fi for convenient wireless connection with a compatible smartphone.
- DAB+ radio tuner for noise-free and interference-free reception and crystal-clear digital stereo sound.
- Bluetooth(R) wireless technology for hands-free calling and music streaming. (Available functions depend on a mobile phone)

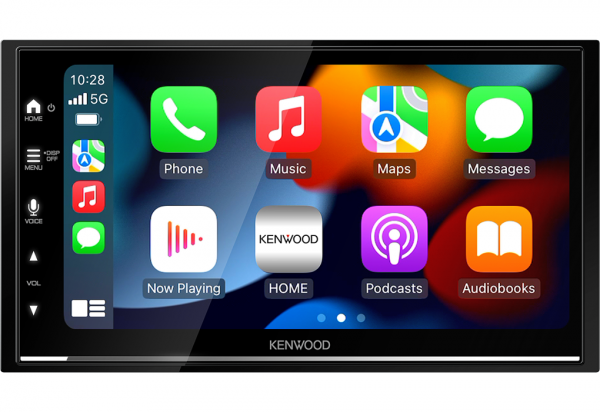

- Supports CarPlay wireless (Wifi) and wired (USB).
- Supports Android Auto wireless (Wifi) and wired (USB).
- Support Android USB Mirroring including a 2-way touch control function.
- Dedicated rear camera input with parking guidelines
- 3 RCA high-performance preamp outputs (2.5 V) (front/rear/sub)
- Digital sound processor, runtime adjustment and 13-band EQ for optimum sound tuning improvements
- Temporary housing (75 mm) for easy installation.
Technical specifications
General characteristics
- DIN format 2 DIN
- Graphical user interface Yes
- Selectable GUI background Yes
- Key illumination Variable colour scheme
- Touch sensor yes
- Installation memory Yes
- Backup Storage Yes
- Volume Attenuator with Soft Return Yes
- Touch-sensitive sound Yes
- Remote controllable Yes, KNA-RCDV340
- digital clock yes
- Integrated Bluetooth Yes
- Built-in DAB tuner Yes
- Integrated WiFi Yes
- Made for iPod Yes
- Firmware upgradable Yes
Features monitors
- LCD type Wide VGA 6.8.”
- LCD LED backlight
- Display Modes 3 modes (Full (Default)/Auto/Normal)
- Screen Adjustment Noon/Night Memory/Brightness/Tint/Color/Contrast
- Sensor for manual/synchronous automatic dimmer
- Dimmer level Auto/On/Off
- Auto video source mode for CarPlay/Android.
- Capacitive touch panel
- Anti-glare display type
- Display with anti-fingerprint film
- Viewing angle setting “0” (default) / “-1” / “-2” / “-3”
- NTSC/PAL Selection Yes (Auto)
- Display off mode Yes
Features User Interface (GUI)
- Text 14 languages: â–º English (UK) (default) â–º English (US) â–º Spanish â–º French â–º German â–º Italian â–º Dutch â–º Russian â–º Portuguese â–º Hebrew â–º Greek â–º Polish â–º Czech â–º Hungarian
- Software updates via USB
- Demo mode Yes
- Top Menu Customization Yes
- Customizable background preset x 9 + user preset x 1
- Take pictures Yes
- R-CAM break Yes
- The r-Cam indicator on display Yes
- Parking Aid / Guidelines Yes
- Has network and Wi-Fi
- Built-in Wi-Fi Built-in
- Dual-band frequency range (2.4 GHz / 5 GHz)
- IEEE standard 802.11a/b/g/n/ac
With tuner
- Channel selection list
- Tuner type JKTS
- FM reception Yes
- AM reception (MW/LW) Yes
- AM reception Yes
- FM(RDS) + AM(MW/LW) Tuner Yes
- Tuner presets (FM/AM) 5 presets (15FM / 5AM)
- Tuning Mode (Auto1/ Auto2/ Manual) Auto1/Auto2/Manual
- Search channel up/down Yes
- Automatic Memory Entry (AME) Yes
- FM Stereo/Mono Selector Yes
- RDS (PI, PS, AF, TI, Clock) Yes
- Radio Text Plus Yes
- Traffic information Yes
- Local Search Yes
- Automatic TP search Yes
- Enhanced Other Networks (EON) capability Yes
- Program Type Function (PTY) Yes
With DAB tuner
- DAB+ built-in tuner Yes
- Digital Radio Certification Mark Yes
- DAB/DAB+ Band Band III
- DAB/DAB+ mode I, II, III, IV
- Smart Search Yes
- Radio Mode/Search Mode Auto1/Auto2/Manual
- Service presets 5 bands * 3 cell presets,
- Preset List Yes
- Alphabetical search Yes
- Traffic information Yes
- Automatic selection DAB-DAB/DAB-FM Yes
- Continuity without interruption DAB-FM Yes
- DMB support Yes
- Announcement Switching (ASW) Select Yes
- EPG (Electronic Program Guide) Yes
- Soft linking Yes
- Antenna with on/off selection Yes
Various functions BT
- Hands-Free Profile (HPF) version 1.8
- Connection of 2 phones Yes
- Advanced Audio Distribution Profile (A2DP) Yes
- High quality audio streaming SBC/AAC
- Serial Port Profile (SPP) Yes
- Simple Secure Pairing (SSP) Yes
- Telephone Directory Profile (PBAP) Yes
- Audio/Video Remote Control Profile (AVRCP) Yes, V 1.6
- Multiple profile support Yes
- Automatic pairing of iPhone and Android via USB Yes
- KENWOOD Music Mix support Yes
- Private Mode Yes
- Request to disconnect call Yes
- Voice control yes
- Noise cancellation yes
- Echo cancellation yes
- High quality noise cancelling microphone External microphone
Playback of audio files
- AAC files (*.m4a) can be played from USB
- AAC files (*.aac) can be played on USB
- MP3 files can be played from USB
- WMA files can be played from USB
- WAV formats can be played from USB
- Playback of USB FLAC files
Playback of video files
- MPEG1/2 files are playable via USB
- MPEG4 files are playable via USB
- WMV files are playable via USB
- H.264 files are playable via USB
- mkv files are playable via USB
- JPEG files are playable via USB (for background images)
- BMP files are playable via USB (for background images)
- PNG files are playable via USB (for background images)
USB features
- USB port Yes, on the back
- USB 2.0 Hi-Speed ​​Protocol Yes
- Drive swap Yes
- Folder/File/Repeat All
- Random folder/file playback
- Category search Yes
- Resume playback Yes
- Timecode display Yes
- Charging 1.5A (BC 1.2) Yes
iPod features
- Connection via: USB / BT / Wifi
- iPod Accessory Protocol (iAP) iAP2
- Apple CarPlay yes
audio features
- Max. output power 4 x 50W
- 3 RCA preamp outputs: front, rear and subwoofer
- Pre Out Level 2.5V
- Volume Offset Yes
- Volume attenuator (-20dB) with smooth return to original level Yes
Multimedia and DSP functions
- DSP chip JKTS DSP
- Attitude control Yes
- Preset position 4 presets
- Cockpit size position Yes
- G EQ 13 bands
- G-EQ KBS Yes
- G-EQ manual adjustment Yes
- G-EQ adjustable level Yes, +9dB / -9dB
- Yes, high pass filter
- Low pass filter yes
- 3-way X over Yes
- Channel level management Yes
- Space Enhancer Yes
- Colonel Yes
- Manufacturer Yes
- volume yes
- Stage EQ Yes
- Bass Enhancement Yes
- Drive EQ Yes
- Speaker size management Yes
- Digital Time Alignment Yes
- Equalizer presets / user settings 8 presets / 4 user settings
- Balance and fader control Yes
- Source Volume Offset source independent
video capabilities
- Audio-Video Out Yes, Video: RCA, Audio: Mini Jack
- Audio/Video-in Yes, mini-jack (rear)
- Rear camera video input 1 dedicated video input (RCA)
- Reversing camera mode detection Reversing sensor
- Parking Policy Yes

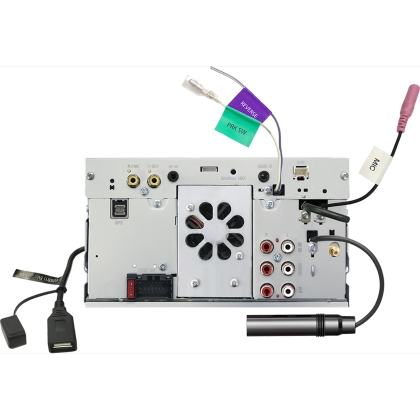

connectivity
- Rear USB 1 interface
- Preparation for steering wheel control* (*with optional interface) Yes
- Compatible with programmable steering wheel controls Yes
- DC cable NEW Mitsumi to ISO
- Parking sensor cable Yes
- Power Control (P.CON) Yes
- dimmer yes
- Preamp outputs 3 x RCA (front/rear/subwoofer)
- AV input 1x mini jack (selectable: AV-in / Camera-in)
- RCA video output x1
- Reversing sensor cable Yes
- Rear camera input Dedicated RCA video input
- GPS antenna input HRS GT5-1S connector
- FM JASO connector antenna input
- DAB antenna input SMB connection
- Input for external microphone 3.5 mm mini jack
audio specifications
- Output power 50W x 4
- Rated power (DIN45324, +B=14.4V) 22W x 4
- Output frequency band 20Hz ~ 88kHz
- Preout level 2.5 mV / 10 kOhm,
- Preout impedance 600 ohms
- Speaker impedance 4 ohms ~ 8 ohms
video specifications
- NTSC/PAL input video standard
- External video input level (RCA) 1 Vpp / 75 ohms
- External video input level (mini jack) 1 Vpp / 75 ohms
- External audio max. input level (mini jack) 2Vpp / 25kOhm
- Video input level (RCA) 1 Vpp, 75 ohms
- Video output level (RCA) 1 Vpp / 75 ohms
Specifications monitors
- Screen size (diagonal) 6.75 inches wide
- Screen size (W x H) 151.8 x 79.7 mm
- Transparent TN LCD
- Active dot matrix TFT drive system
- Number of pixels 1152000 pixels (800 (H) x 480 (V) x RGB)
- Effective Pixels 99.99%
- RGB pixel arrangement
- Backlight LED (Light Emitting Diode)
Technical specifications
- Operating voltage 12V DC car battery
- Central body dimensions 182 x 111 x 74 mm
- Main body weight 1200g, (sleeves and escution included)
Included accessories
- Extraction key 2 pieces
- frame yes
- Mounting rail Yes
- DC cable (Mitsumi to ISO) 25 cm
- GPS antenna with 3.5 cm cable
- GPS antenna mount (metal adhesive pad) Yes
- Microphone with 3cm cable
- Multilingual user manual including quick guide + user manual
