KENWOOD KDC-BT460U 1Din Stereo with Bluetooth / CD / USB / Alexa

-DIN Car Radio with Bluetooth & USB

Listen to your favourite radio broadcasts, CDs or music stored on a USB stick.

With built-in Bluetooth technology for safe hands-free calling or music streaming and the ability to use your smartphone as a wireless remote control with the ‘KENWOOD Remote’ App.

The digital sound processor with digital time alignment and 13-band EQ ensures an optimal sound experience. Hide more

– Bluetooth technology for safe hands-free calling or music streaming
– Automatically switches between the 2 actively paired phones for incoming calls.
– Up to 5 BT audio devices paired simultaneously, each can take turns sharing their music choice with the ‘Music Mix’ function.
– Turn your smartphone into a remote control with the ‘KENWOOD Remote’ application.
– AUX connection & illuminated USB connection with dust cover
– Suitable for playing MP3, WMA, WAV & FLAC audio files.
– Ultimate sound image can be set using the built-in DSP and its DTA, 13-band EQ, X’over,…
– 1x RCA (cinch) line output (rear/subwoofer (switchable)) of 2.5V
– Wide 1-line LCD with high contrast, wide viewing angle and white LED backlight.
– User interface language selection: English, – Russian, French & Spanish.

– Alexa built-in; German menu adjustable; BT hands-free installation for all smartphones; BT audio streaming for up to 5 BT audio sources; 2 telephones can be connected in parallel
– iPod/iPhone control optionally via car radio or Apple player; Front USB port for quick reading/operation of USB memories (MP3/AAC/WMA/WAV/FLAC); 1.5 A charging function for smartphones, etc.
– Powerful RDS tuner; 13-band sound control (EQ) with digital run time correction; the control panel is divided into three areas that can be illuminated differently in a freely selectable colour
– MOS-FET amplifier 4 x 50 W for powerful sound; 2 preamplifier outputs with 2.5 V for additional output steps (switchable); theft protection thanks to the removable control panel
– With an optional adapter, the radio can be controlled via the original steering wheel remote control

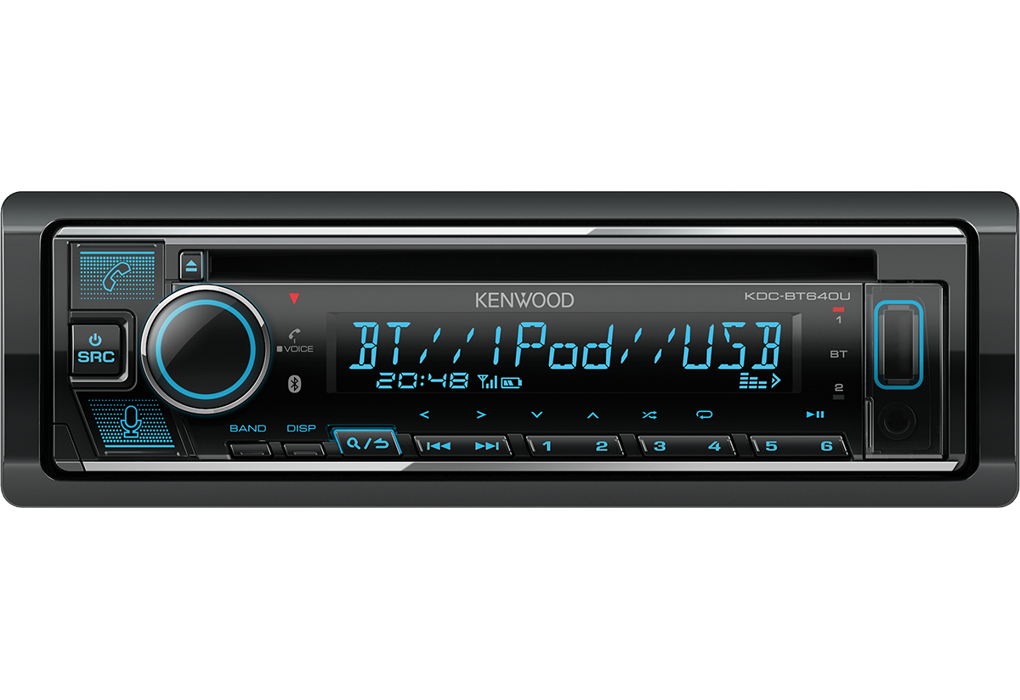

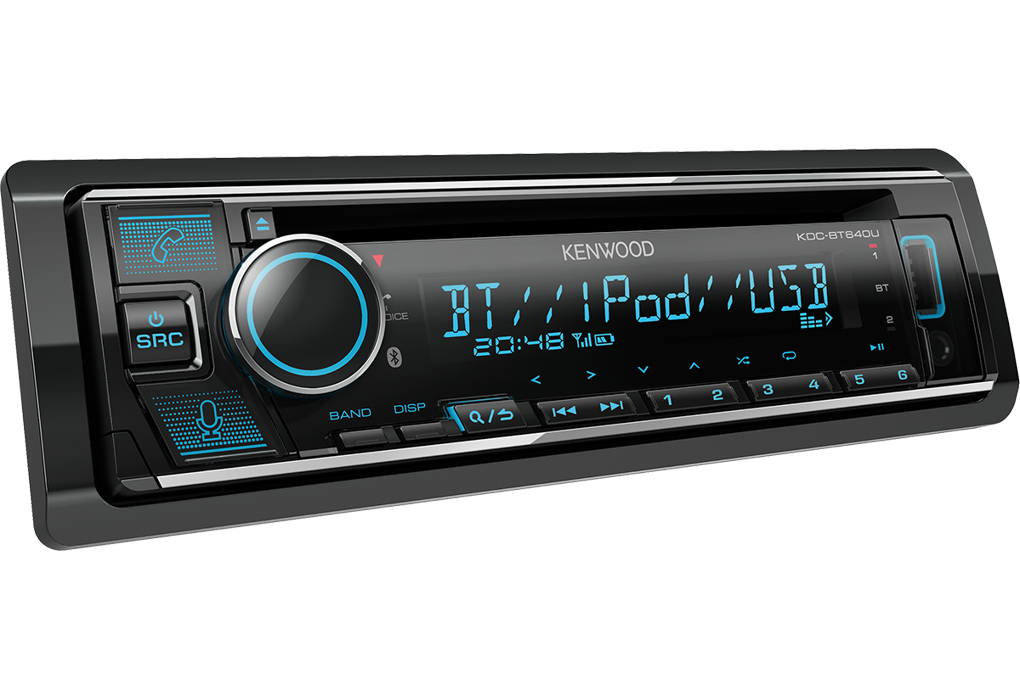

KDC-BT460U
Enjoy convenient control. Built-in Bluetooth technology for hands-free calls and music streaming and the ability to use your smartphone like a wireless remote control. The Digital Sound Processor, Time Alignment & 13-Band EQ ensures you of optimal sound tuning enhancements.

Key Features
Bluetooth technology for hands-free calls and music streaming.
A dual Phone Connection switches automatically between the 2 paired phones for incoming calls.
Enjoy audio streaming just by switching among 5 connected BT devices with Music Mix
Use your smartphone like a wireless remote control with the KENWOOD Remote app.
Front AUX input and illuminated USB with dust cover
MP3 / WMA / WAV / FLAC music file playback.
Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
Rear or subwoofer (Switchable) RCA preout to connect a power amplifier.
Wide 1-line LCD with high contrast, wide viewing angle & white LED backlight.
Menu language in English(default), Russian, Spanish or French.

General Features
DIN Size 1 DIN
Detachable Faceplate
Faceplate Mechanism Full Detachable Faceplate
Key Illumination Red LED
Rotary Encoder & Control Knob
Dual Accent Key Handsfree & Audio Streaming
User Memory
Back-up Memory Menu Settings
Digital Clock (24H)
Clock display when power-off defaults off
All-off Select (20/40/60 minutes)
Built-in Connector Mitsumi, 16-pin
Bluetooth unit built-in
USB interface x 1 (Front)
Firmware upgradeable
Display Features
Display Type Liquid Crystal Display (LCD)
Display Layout 1 line 13 Segments x 13 Digit
Vertical Alignment Liquid Crystal Display
Display Illumination White (LED)
Dimmer Control Manual / Set by Timer
Brightness control 0 – 31 steps
Demo Mode
Menu text in selectable language English(default) / Spanish / French / Russian
TAG Language Display English / Spanish / French / Russian / Greek

Cosmetics Features
Front/edge Black Injection
Dress plate Black Injection
Preset key finish Black Injection
Escutcheon finish Black Injection
Triangle Illumination Blue LED
Front terminal dust cover
Key illumination Bue LED
Illuminated front USB port Blue LED
Display illumination White LED
Brightness Control (Key) 0 – 31 step
Brightness Control (Display) 0 – 31 step
Dimmer Control (Key) Manual / Set by Timer
Dimmer Control (Display) Manual / Set by Timer

Tuner Features
Tuner preset/recall key
FM Reception
AM (MW/LW) Reception
FM(RDS) + AM(MW/LW) Tuner
Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
Preset memory w/o back-up power
Tuning mode Auto1/Auto2/Manual
Up/Down Seek/Scan
Automatic Memory Entry (AME)
FM Stereo / Mono Selector
Radio Data System
Radio Text Plus
Traffic Information
Local search
AF Regional Selectable: AF/AF Reg/OFF
Auto TP search
Enhanced Other Networks Function (EON)
Program Type Function (PTY)
PTY News Off/0/10/20/…/80/90min
Playable Audio File
MP3 files are playable CD/USB
WMA (.wma) files are playable CD/USB
WAV (.wav) files are playable USB
FLAC files are playable USB

CD Features
CD-R/RW Compatible
MP3 Playback with ID3 Tag Display
WMA (Windows Media Audio) Playback
CD Text Support
CD Text with special Character Support English(default) / Spanish / French / Russian / Greek
D.A.C. processing 24bit
0 bit Mute
Random Function DISC Random/Random OFF
Repeat Function Track Repeat/All Repeat
Fast Forward / Reverse play
Tag Information Display

USB Features
USB terminal Front side with dust cover
USB terminal Front side with slide protection cover
USB Type 2.0 Full speed
Drive Change
MP3 playback with ID3 Tag Display
Tag Information Display
WMA (Windows Media File) playback
MP3, WMA, WAV, FLAC playback
Repeat/Scan/Random search
Repeat / Random Play
Repeat Play Folder/File/All
Random play Folder
Resume play
Time code display
1,5A Smartphone Quick Charge

Audio Features
Maximum Output Power 50W x 4
MOSFET Power IC
Auxiliary input in front panel
Auxiliary Type Mini-jack, front panel
Pre-out 1 RCA
Pre-out Output Level 2.5V
Preout Rear / Subwoofer Switchable
Subwoofer Reference Level Adj
3-Way x’over (bi-amp connection)
Source Tone Control & Memory
Tone Control / Easy EQ 13 band, 8 presets
Balance/Fader Control
Loudness Control Off / LV1/ LV2
Bass Boost Circuit Off/+1/+2/+3/+4/+5
Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
Digital Sound Processor (DSP) Built-in
Digital Time Aligment (DTA)
Low- & High-pass Filter
Speaker Size Control
Sound Reconstruction
Space Enhancer
Realizer
Stage EQ
Drive EQ

Bluetooth General Features
Max num. of regist. phones for HFP & A2DP 5 phones
Hands Free Profile (HPF) V1.7.1
2 Phones Switchable Hands Free
2 phones fulltime connection
Audio Streaming (A2DP) (SBC)
Serial Port Profile (SPP)
Phonebook Access Profile (PBAP)
Audio/Video Remote Control Profile (AVRCP) V1.6.1
Wireless Music Browsing (AVRCP)
KENWOOD Remote App Ready Android only, available in Play store
KENWOOD Music Mix Support
Private mode
Interrupt call request
Noise Canceller
Echo Canceller
Phone device status display
Audio device status display
Signal strength display
Remaining battery display
Bluetooth Paring Indicator
Bluetooth phones to register 5
High-quality noise cancelling microphone Included (rear wired)
Bluetooth firmware upgradeable
* depends on phone model/make & Kenwood unit

Connectivity
Front USB & AUX Input
OEM Wired Remote Control ready Optional interface needed
DC-Cord Mitsumi to ISO
Power Control (P.CON) wire
Preout 1 x RCA (rear / Sub woofer switchable)
FM Antenna Input JASO connector
External microphone input 3,5mm mini-jack
