LAUNCH CReader 9081 Full OBD2 Scanner Diagnostic Tool
LAUNCH Auto Code Reader ABS SRS Oil EPB BMS SAS DPF Engine DIY Scanner
Product Introduction:
CReader 9081 is a small car maintenance tool integrating OBD diagnostic functions with 11 reset functions. It has a 4.0-inch color display and provides quick diagnosis for over 40 European, American, and Asian mainstream car models.
MULTIFUNCTION SCAN TOOL:Â CReader 9081 is a small car maintenance tool integrating OBD diagnostic functions with 11 reset functions. It can fast scan and clear trouble codes. No batteries, supply power through OBDII cable.
Â
Â

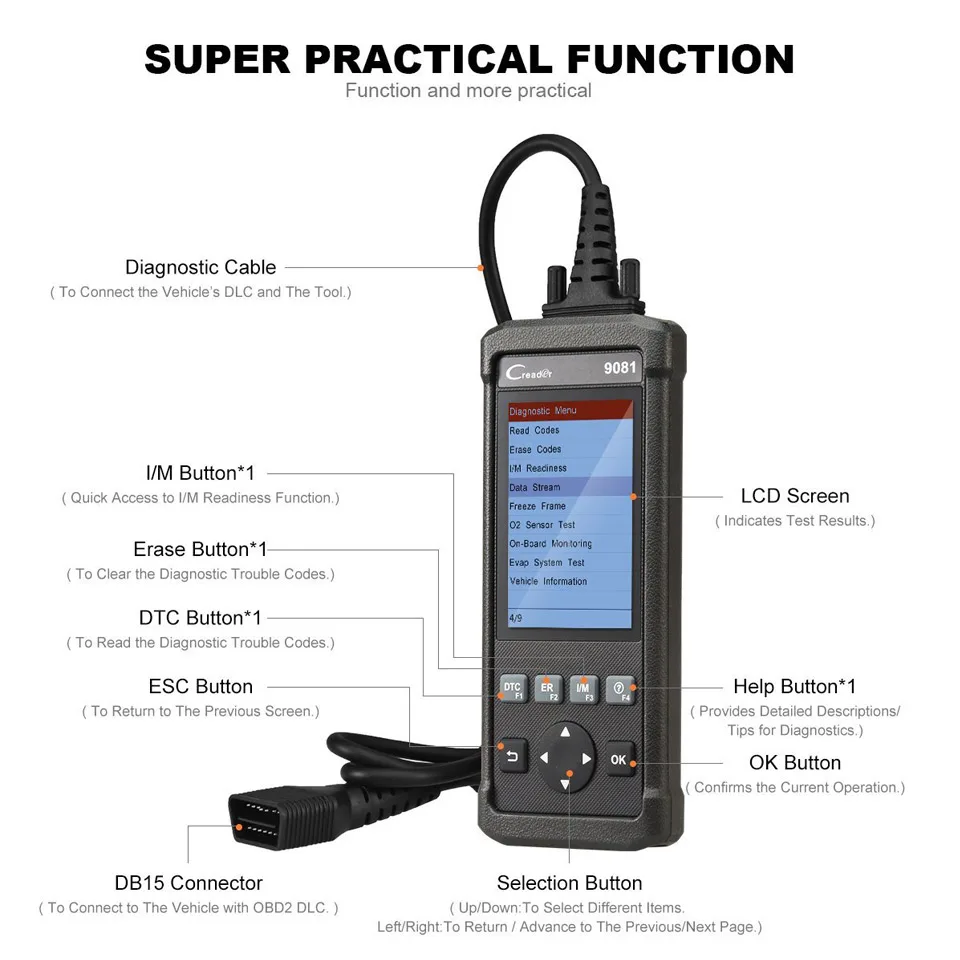

EASY TO USE: All-in-one screen and easy-to-use hotkeys make the 9081 an ideal tool for the DIYer and professional technicians. Thoughtful design elements like Quick access with hot keys; Durable buttons with metal covers to prolong life; and Extended cover connections to maximize protection will allow this unit to last through years of constant use and abuse.
FULL OBD FUNTION:Â OBD Full function; Works on ALL 1996 and newer OBD II & CAN domestic or import vehicles.
RESET FUNTION:Â Support Electrical Parking Brake(EPB) reset; Battery Management System(BMS) reset; Steering Angle Sensor(SAS) reset; Diesel Particulate Filter(DPF) reset; TPMS Reset; Works on 46 car models, see the description for more models.

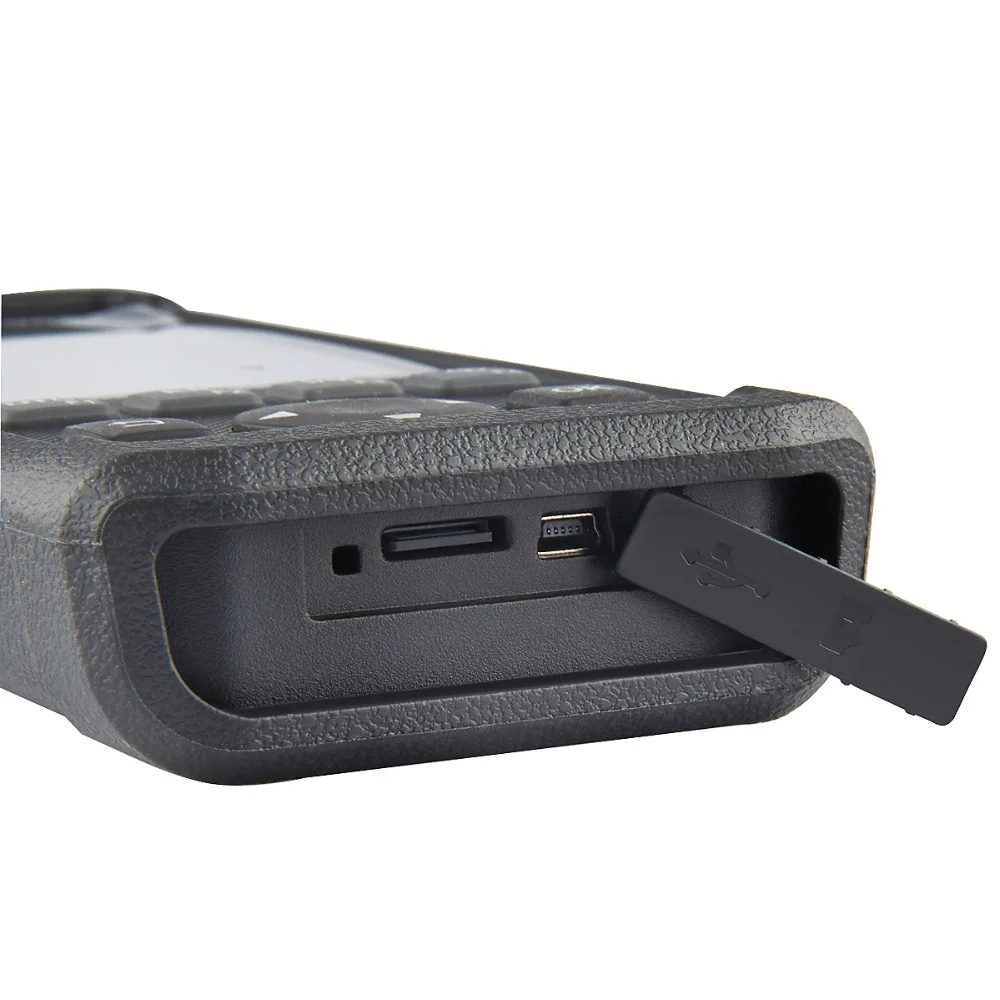

FREE UPGRADE and MULTI-LANGUAGE: Free update via internet. There are 2 methods available to update your tool: Via TF card or USB cable, the TF card and USB cable are included in the product.
Product Functions:
1.OBD full functions
1) Read dynamic data streams and MIL
2) Read readiness status
3) Query freeze frame data
4) Read current DTCs
5) Clear DTCs
6) O2 sensor test
7) On-board monitor test
8) Read pending DTCs
9) On-board system or component control
10) Read vehicle information
11) Read permanent DTCs

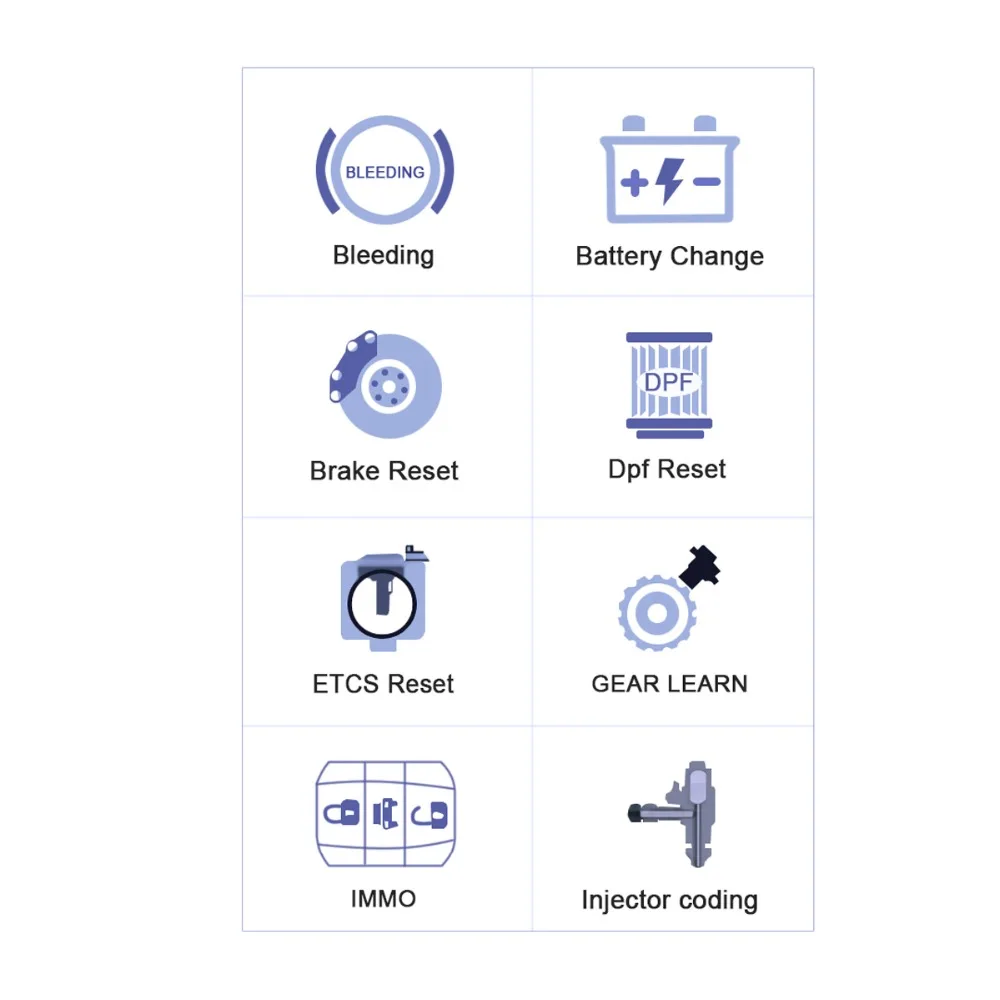

2. Oil reset
3. EPB reset
4. BMS reset
5. SAS reset
6. DPF reset
7. TPMS reset
8. Throttle matching
9. ABS brake bleeding
10. Tooth learning
11. Anti-theft matching
12. Injector programming
13. Query DTCs
14. PC internet update
15. Multilingual support
16. Print data via PC
Specifications:
Screen:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4.0″ TFT 320*480 dpi
Voltage range: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 9-18V
Operating Temperature:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0~ 50
Environment Temperature:Â Â Â Â Â Â Â Â Â Â Â Â Â -20~70

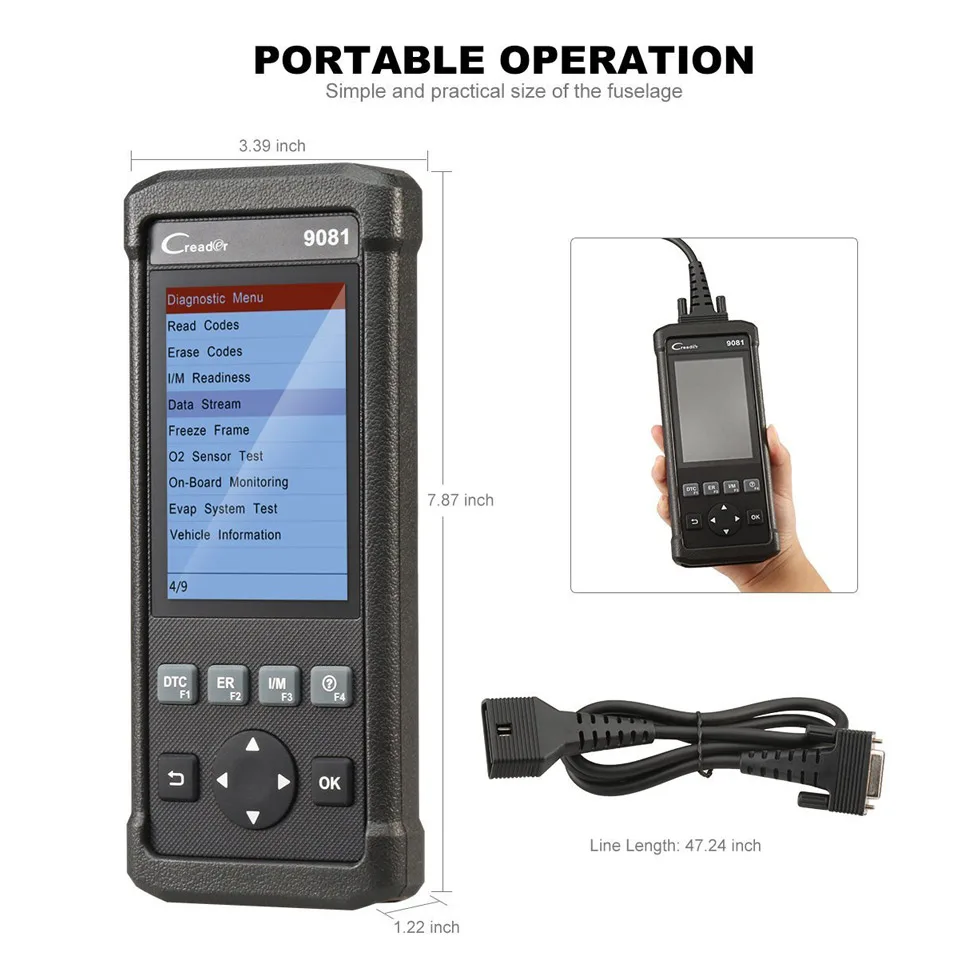

Dimension: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 195mm*86mm*32 mm (7.6 “*3.4″ *1.2”)
Weight:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 460g
Item Comparision:
Supported Cars:
CR9081 has 2 main functions:
1. Support car models for OBDII diagnostic function:
All cars that suport OBDII, from 1996 to present (America cars), 2002 to present (Europe cars), 2008 to present (Asia cars), 2005 to present (Japanese cars).
2.Support car models for 11 Reset functions:
Note: if you were not sure about your car, pls leave us your car information as:  brands / model / year , we will check if creader 9081 can diagnose your car or not.
Oil Reset:
EPB Reset:
BMS Reset:
SAS Reset:
ABS Bleeding:
Throttle matching:
TPMS Reset:
DPF Reset:
Tooth learning:
Anti-theft matching:
Injector programming:
