ANCEL BST60 -12V Car Van Boat Battery Tester Alternator Charge Voltage Diagnostic Tool

EU UK 12V Car Van Boat Battery Tester Alternator Charge Voltage Diagnostic Tool

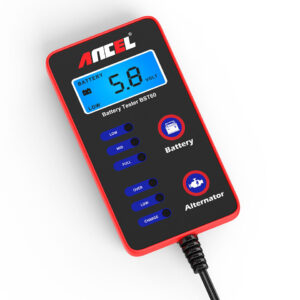

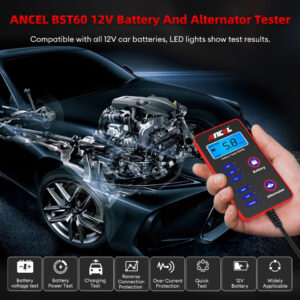

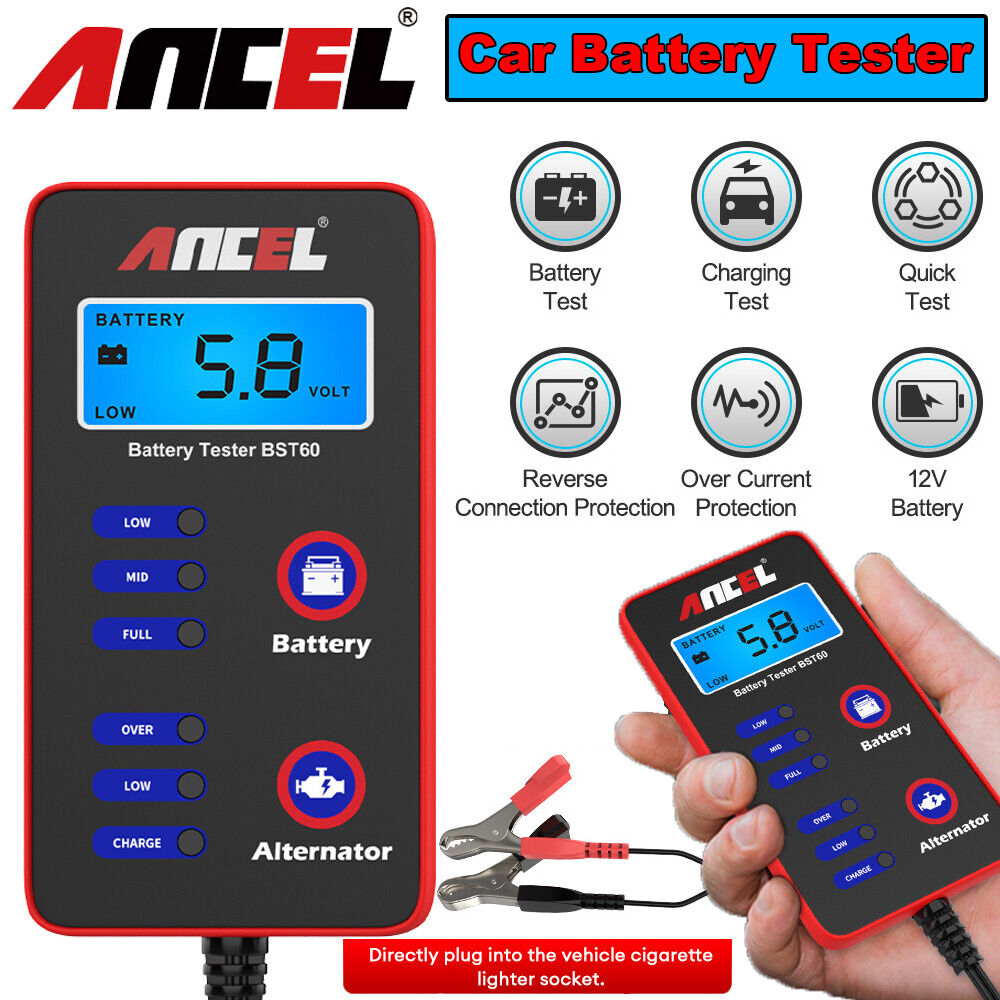

ANCEL BST60 is a 12V automotive battery tester that quickly tests the alternator charging system with a cigarette lighter adapter, providing a comprehensive analysis of your car battery’s health.



ANCEL BST60 Functions:

1. Test all 12V vehicles starting lead-acid batteries.

2. Show real-time voltage and battery charge with the LOW/MID/FULL result.

3. Test the charging system with the LOW/OVER/CHARGE result and display the charging voltage in real-time.

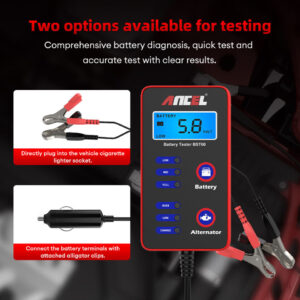

4. Two options available for testing:

Directly plug into the vehicle cigarette lighter socket.

Connect the battery terminals with attached alligator clips.

This item features built-in protection mechanisms that guard against reverse connection and overcurrent. Additionally, it includes a fuse to provide extra safety measures.



HOW TO TEST?

Battery Test:
1. Keep the engine off.
2. Connect the tester to the battery through alligator clips or a cigarette lighter test line, and the battery voltage value will be shown on the screen.
※ Test with cigarette lighter socket: please insert the cigarette lighter of the tester into the 12V DC cigarette lighter socket of the vehicle.
※ Test with alligator clips: please connect the red alligator clip of the device to the positive pole (+) of the battery, and connect the black alligator clip to the negative pole (-) of the battery.
3. Turn off all electrical equipment and leave it on for a while, waiting for the voltage to stabilize.

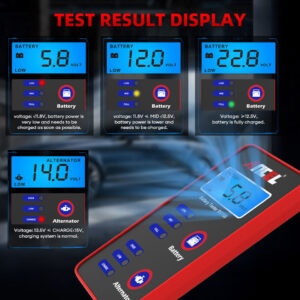

4. Press the “Battery” button to enter the battery test function. At this time, the screen shows the voltage value and the test result.
※ If the “LOW” light is on, it means that the battery power is very low and needs to be charged as soon as possible. Voltage: <11.8V
※ If the “MID” light is on, it means the battery
power is lower and needs to be charged.
Voltage: 11.8V ≤ MID <12.5V

※ If the “FULL” light is on, it means the battery is
fully charged. Voltage: ≥12.5V



Charging Test:

1. Please keep the vehicle stationary, increase the
engine speed (RPM) to 2500r/min or above,
and turn off all electrical equipment, including

headlights, air-conditioning fans, glass
heating, etc.

2. Press the “Alternator” button to enter the
charging system test function. At this time, the
screen shows the charging voltage value and
the test result.

※ If the “OVER” light is on, it means that
the generator output voltage is higher.
Voltage: ≥15V.

※ If the “LOW” light is on, it means that the
generator output voltage is lower.
Voltage: <13.5V.

※ If the “CHARGE” light is on, it means the
charging system is normal.
Voltage: 13.5V ≤ CHARGE<15V.
